11.0 Firmware Upgrade Utility

Note:

To check for firmware updates using Levelogger Software, retrieve settings from the connected AquaVent (see Section 4). "Firmware Update Available" will appear in the top right menu bar if there is an update available. Clicking the message will open a web page where you can download the firmware update. You can also use the Software's Help menu.

With the AquaVent logger connected to the Wellhead by the Vented Cable, use the USB Connector Cable to connect the SP or SPX Wellhead to the PC.

The SPX Wellhead also needs a power supply connected to the SDI-12/MODBUS Connector Cable in order to perform the firmware upgrade. See separate User Guides for power connection instructions.

The Firmware Upgrade Utility is used to upload new firmware files to an AquaVent logger and/or SP/SPX Wellhead. The Firmware Upgrade Utility can be launched from the Utilities menu at the top of the Levelogger Software. The zipped firmware file can be obtained from: www.solinst.com/downloads/

Note:

It is important that the communication between the PC and the AquaVent is not interrupted during a firmware upload, so please make sure to close any other running programs, including screen savers, and do not disconnect the AquaVent before the upload is finished.

Make sure to unzip the firmware file after you have downloaded it, so you can access the *.ssf file. There are two separate firmware files available; one for the AquaVent logger and one for the SP/SPX Wellheads. Update each hardware component separately; update the Wellhead before updating the AquaVent logger.

To upload new firmware to an AquaVent, follow these steps:

  1. Open the Solinst Firmware Upgrade Utility from the Utilities menu in the Main Levelogger Software Window. Pick the Com Port to which the AquaVent is connected and make sure the Baud Rate is set to 9600.
  2. Click the 'Open' button , which should open a file dialog asking for the firmware file (*.ssf) to upload. Navigate to the directory where the firmware file was saved on your PC, then click on the file and click 'Open'.
  3. Check the 'Firmware File Information' box to make sure the opened file is correct.
  4. Click the 'Upload Firmware' button , to start the firmware upload process.
  5. Note:

    While the firmware is being updated, the SPX Wellhead will ignore or provide time-out response to any requests from the MODBUS or SDI-12 network.

  6. If a communication error occurs and is indicated in the AquaVent Information Window (Figure 11-1) either before the 'Verified Program Checksum' message or after the 'Program Information Section', then restart the upgrade process.
  7. If, however, a communication error occurs between the 'Verified Program Checksum' and the 'Program Information Section' messages, then please contact Solinst. You will need to give the AquaVent serial numbers and explain the exact positioning of the error message.
  8. Note:

    If an upgrade process in the SPX Wellhead fails or is interrupted, then recovery may require a power cycle, usually accomplished by unplugging the USB Connector Cable and SDI-12/MODBUS Connector Cable, then reconnecting after 30 seconds.

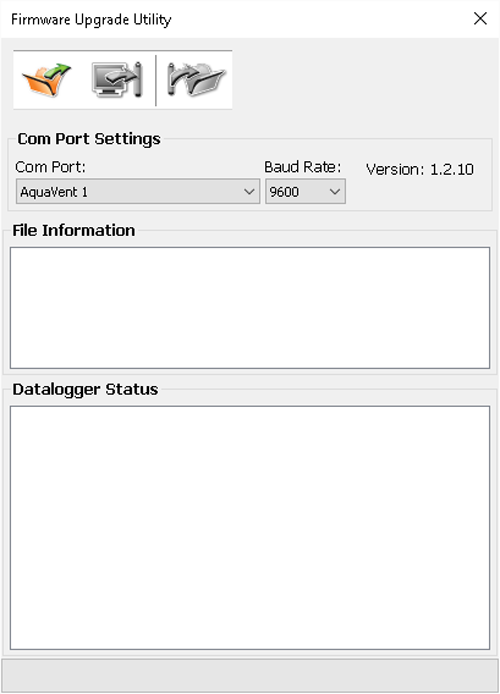

Figure 11-1 Firmware Upgrade Utility Window
