Note:
To use the LevelVent 5 with Version 4.6.3 Levelogger Software, the LevelVent 5 logger must be using Firmware Version 1.006 or higher.

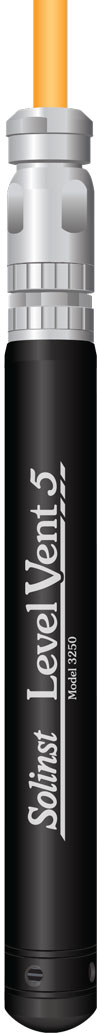

Figure 1-1 LevelVent 5 Logger
| Table 1–1: LevelVent 5 Logger Technical Specifications | |
|---|---|
| Level Sensor: | Piezoresistive Silicon with Hastelloy Sensor |
| Ranges: | 5, 10, 20 m |
| Accuracy: | ± 0.05% FS |
| Normalization: | Automatic Temperature Compensation |
| Temp. Comp. Range: | 0ºC to 50ºC |
| Temperature Sensor: | Platinum Resistance Temperature Detector (RTD) |
| Temp. Sensor Accuracy: | ± 0.05ºC |
| Temp. Sensor Resolution: | 0.003ºC |
| General: | |
| Battery Life Estimate: | 10 Years based on 1 reading/minute (in logger, not user replaceable) |
| Clock Accuracy (typical): | ± 1 minute/year (-20ºC to 80ºC) |
| Operating Temperature: | -20ºC to 80ºC |
| Maximum # Readings: | 150,000 sets of readings |
| Memory: | Continuous or Slate mode |
| Communication Speed: | 9600 bps Solinst USB |
| Size: | 22 mm x 173 mm (7/8" x 6.8") |
| Weight: | 190 grams (6.7 oz.) |
| Wetted Materials: | Delrin®, Viton®, Polyurethane (TPU boot), 316L Stainless Steel, Hastelloy, PFAS-free PTFE |
| Corrosion Resistance: | Baked-on coating using polymerization technology (inside and out) and Hastelloy pressure sensor |
| Sampling Modes (using Levelogger Software): | Linear, Event & User-Selectable Schedule with Repeat Mode, Future Start, Future Stop, Real Time View |
| Measurement Rates: | 0.125 second to 99 hours |
| Barometric Compensation: | Automatic |
| LevelVent 5 Models | Full Scale | Accuracy | Resolution |
|---|---|---|---|
| M5 | 5 m (16.4 ft.) | ± 0.3 cm (0.010 ft.) | 0.001% FS |
| M10 | 10 m (32.8 ft.) | ± 0.5 cm (0.016 ft) | 0.0006% FS |
| M20 | 20 m (65.6 ft.) | ± 1 cm (0.032 ft.) | 0.0006% FS |
Note:
The Model number refers to the depth of submergence below water level that the pressure sensor can withstand. i.e.: The LevelVent 5 which is available in M5, M10, and M20 ranges has actual water level ranges of 5 m (16.40 ft), 10 m (32.80 ft), and 20 m (65.60 ft) respectively.
