Remote Monitoring Solutions

solinst model 9100 sts telemetry systems

solinst sts telemetry system logo

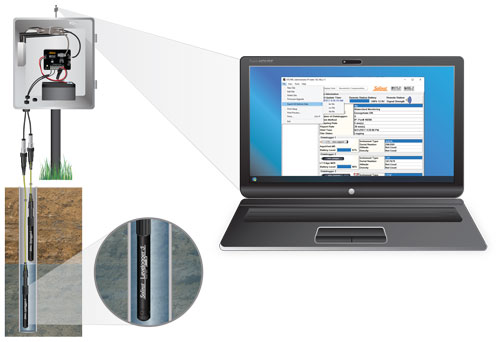

The Model 9100 STS Edge Telemetry System provides a remote monitoring solution for Solinst dataloggers. The STS System uses wireless cellular technology to connect a number of remotely located dataloggers to a central Access database, or for viewing continuous, real-time data.

STS Telemetry Systems use a standardized Remote Station hardware setup that includes a GSM modem. A user-supplied lead-acid 12V battery provides power. There are also options for back-up power, including solar panels or direct AC. The communication options are flexible to suit each site.

Programming remote networks is simplified using the intuitive STS/RRL Telemetry Software. The Software is used to create sampling and reporting schedules. The software also provides a simple method to store and manage your own data.

Communication from the Home Station computer is two-way; therefore, you can program alarms to be sent as e-mail when a high, low, or a certain percentage change is detected in the field.

Maintenance is made simple through remote diagnostic reporting, and the ability to update the data collection schedule from the Home Station.

By eliminating manual data collection, STS Telemetry provides an efficient and convenient method of collecting remote data. Less time and money is spent traveling to each site, and without datahosting fees, there are further cost savings.



solinst model 9200 remote radio link telemetry system

solinst 9200 rrl remote radio link logo

The Model 9200 RRL Remote Radio Link is an inexpensive solution for creating a closedloop network of Solinst dataloggers. The RRL is excellent for local sites such as landfills, golf courses, or mine sites. Radio communication has the benefit of no service fees, and no loss of data due to signal issues. RRL radios can transmit data up to 20 miles/30 km (line-of-sight).

RRL Stations have standardized hardware, therefore they have the flexibility to be programmed as a Home Station, Remote Station, or Relay Station. Setup is simple using a "Wizard" in the STS/RRL Telemetry Software. The Stations are powered by 6 replaceable 3.6V AA lithium batteries, with the option of using a solar panel.
