6.3.1 Programming Linear Sampling for Leveloggers

Tap Linear. Linear refers to a set time interval between collections of readings. You can select to record in seconds, minutes, hours, or days.

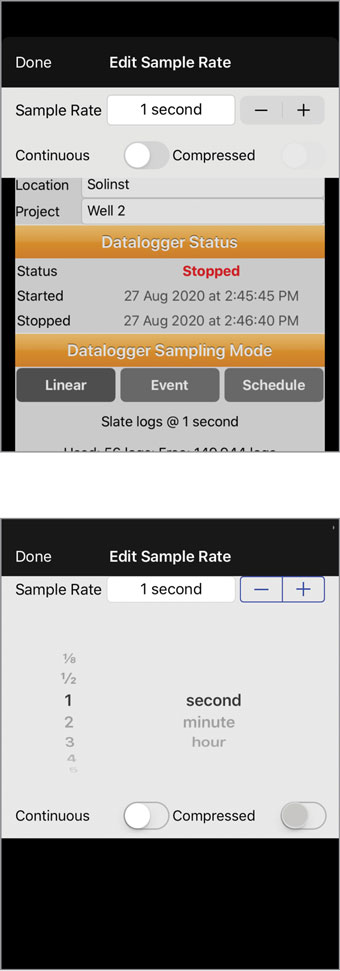

edit linear - iOS

Figure 6-9 Edit Linear - iOS

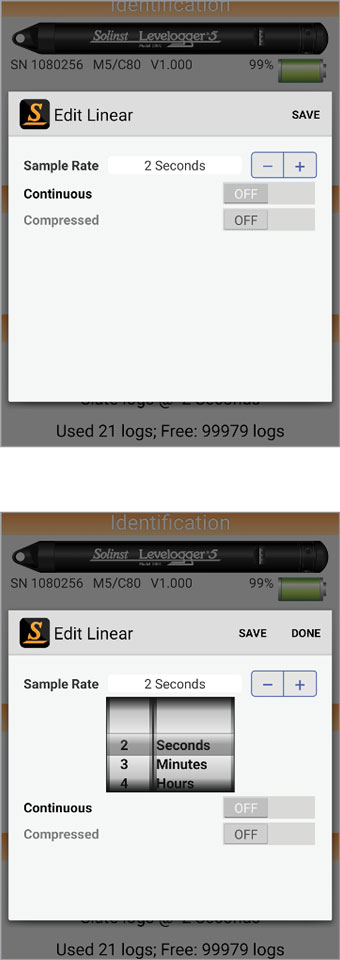

edit linear -Android

Figure 6-10 Edit Linear - Android


Note:

Tap on the "Sample Rate" field to show the time scroll wheel to enter the desired setting. Tap "Done" on your iPhone or iPod. Tap anywhere out of the Edit Linear screen to save the setting on your iPad. Tap "Done", then "Save" on an Android device.

Continuous logging is a memory mode option for the Levelogger Edge/Barologger Edge, AquaVent, and Levelogger Gold/Barologger Gold Models. With Continuous logging, the new log is started at the end of any previous log and continues logging, eventually recording over the first logged data.

If Continuous logging is not enabled, Slate logging is the default memory mode. With slate logging, the new log is also started at the end of any previous log, but will stop recording after the memory is full, so that the beginning of the current log will not be written over.

Data compression is an option available for the Levelogger Edge/Barologger Edge and AquaVent. This increases the memory capacity of the datalogger from 40,000 readings up to a maximum of 120,000. Data compression works by only saving data changes in memory. Enable the Compressed option to allow data compression.
