Splitters

solinst splitters rrl splitters remote radio link splitters rrl reader cable connections image

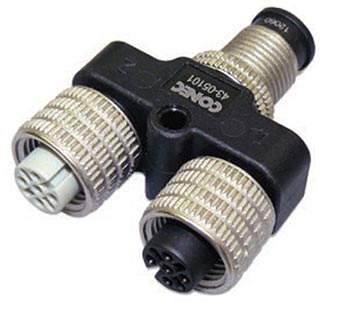

Figure 2-6 Splitter
(pt# 109427)

Splitters allow the connection of up to four Leveloggers to each RRL Gold Station. One or two Splitters can be used, each allowing the connection of two Leveloggers. To connect a Splitter to the RRL Station, remove the black dust cap line up the holes in the connectors and screw the Splitter onto the RRL connection until finger-tight.

Reader Cables are connected to the Splitters in the same manner they are connected directly to the RRL Gold Station. Direct Read Cables with attached Leveloggers are threaded to the Reader Cables.

solinst splitters rrl splitters remote radio link splitters rrl reader cable connections image

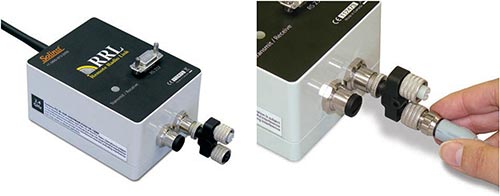

Figure 2-7 Splitter Connection
