3.3 LevelSender Software Communication

For initial setup and direct communication with LevelSender PC Software, the LevelSender must be connected to the PC using a mini USB cable (available from Solinst).

To access the USB connection on the LevelSender:

  1. Use a Phillips screwdriver to remove the three screws from the top of the LevelSender.
  2. If installed, loosen the antenna by its base; about three full turns to fully disconnect the antenna.
  3. Pull off the top cap of the LevelSender along with the antenna.
  4. Connect the USB cable to the mini USB connection in the LevelSender.
  5. When finished communicating with the PC Software, unplug the USB cable.
  6. Line up the antenna connector and screw it back onto the connection on the top of the LevelSender.
  7. Lower the top cap over the installed antenna, Push the top cap into place. This may take some force, as there is an o-ring on the top of the LevelSender and in the top cap antenna opening.
  8. Replace the three screws to secure the top cap.

solinst levelsender solinst levelsender software communication levelsender software communication levelsender usb connection solinst levelsender usb connection image

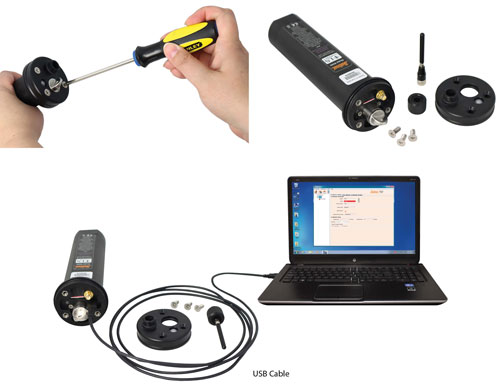

Figure 3-1 USB Cable Connection
