With the WLTS connected to the Communication/Vented Cable (see Section 1.4.1) and the Cable connected to the WLTS Current Loop Adaptor (see Section 1.5.1), refer to the wiring diagrams below for correct connection of the WLTS Current Loop Adaptor to the user supplied equipment, including external power (8.5–36V).

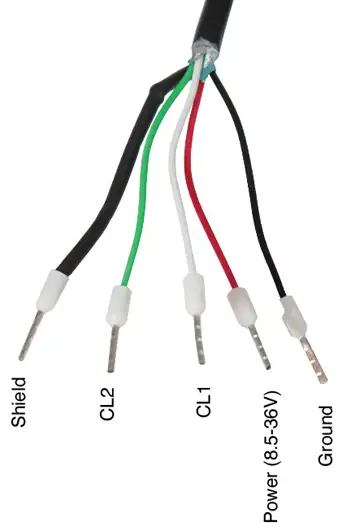

3.1 4-20mA Wiring Connection

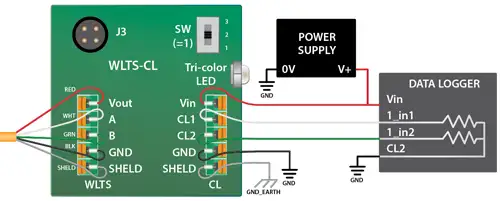

Figure 3-1 4-20mA Wiring Overview
