Communication Cables contain power and communication wires, as well as a vent tube running the length of the cable for the vented sensors. The vent tube and wires are jacketed in polyurethane, providing durability and protection. The cable is 8 mm (0.320") in diameter, while the connectors are 20 mm (0.790") in diameter.
Note:
The Vented Communication Cables have a vent tube to surface with a Gore vent cap to ensure airflow through, while preventing moisture from entering the tube.

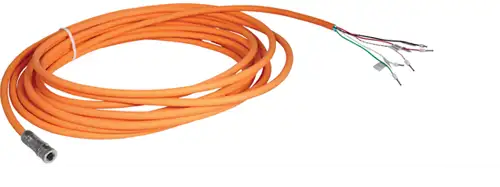

Non-Vented Communication Cable

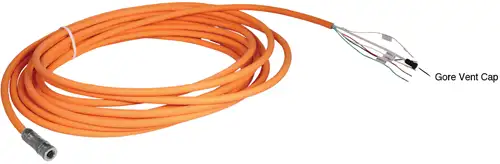

Vented Communication Cable
Figure 1-2 Communication/Vented Cables
| Communication Cable Specifications | |
|---|---|
| Wetted Materials: | Polyurethane, Nickel plated Brass, Viton |
| Diameter: | Cable: 8 mm (0.32") Connector: 20 mm (0.79") |
| Lengths: | Up to 300 m (vented and non-vented) |
| Max. Bend Radius: | 25 mm (1") |
| Operating Temperature: | -20ºC to 80ºC |
| Vent Tube Moisture Protection: | Built-in hydrophobic filters at sensor connection and plug at surface |
Table 1-2 Communication Cable Specifications
