1.5.1.2 Connecting to the AquaVent Wellhead

Note:

See Section 8.2.2 for installing the well cap base and the Support Hanger Bracket for securing the cable when deployed.



solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image

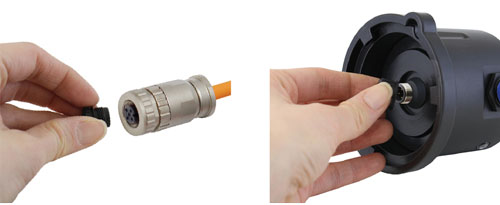

Remove the storage caps from the connectors on the Wellhead and Vented Cable.



Note:

Ensure you save all the storage caps for future use.



Note:

For diagnostic purposes, you may wish to install the end of the Vented Cable with the serial number, to the Wellhead connection at surface

solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image
solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image
solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image

solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image

Line up the alignment pin and socket.



solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image

Gently push the Wellhead and Vented Cable together. Twist the cable connector slightly until you hear/feel a small click when the properly aligned connection is made.



Note:

Do not twist the Vented Cable when connecting to a Wellhead or AquaVent logger. Only turn the stainless steel coupling.

solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image

Only tighten the stainless steel coupling while holding the Wellhead and Vented Cable still. Tighten the stainless steel coupling until it seats. Do not twist the Vented Cable or Wellhead.



Figure 1-10 Connecting a Vented Cable to the AquaVent Wellhead
