9.1 Customizable Levelogger Settings File Setup

Note:

Remember that the Leveloader must be in the 'Data to PC' mode.

This feature allows you to input up to 10 customized files with pre-defined settings for the Levelogger series including: Project ID, Location, Sample Mode, Sample Rate, Channel ID, Units and Offset.

To create a settings file in the 'Leveloader' tab, select the type of Levelogger you are creating the file for from the drop-down menu, then enter the desired Levelogger settings file name. The available sampling options will be displayed for that Levelogger type. Enter the settings to create the customized file (Figure 9-4). To send the settings file to the Leveloader, click the 'Apply Leveloader Settings' icon .

Note:

Altitude and Density can be set for the Levelogger Junior, LTC Levelogger Junior, and Levelogger Gold and Barologger Gold dataloggers.

solinst leveloader 9.1 customizable levelogger settings file setup levelogger sample rate levelogger altitude levelogger density levelogger channel id levelogger units levelogger offset image

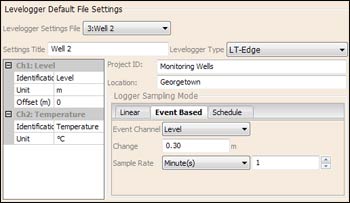

Figure 9-4 Levelogger Default File Settings

Please note that inputs into the ‘Settings Title’ will appear as the settings file title in the Leveloader (Figure 9-6). To create and add more than one customizable file, select a new ‘EMPTY’ slot from the drop down menu (highlighted drop down menu below).

solinst leveloader 9.1 customizable levelogger settings file setup levelogger sample rate levelogger altitude levelogger density levelogger channel id levelogger units levelogger offset image

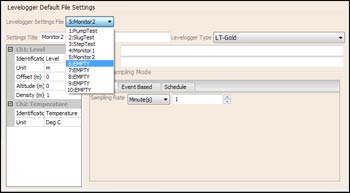

Figure 9-5 Levelogger Settings File - Setup



solinst leveloader 9.1 customizable levelogger settings file setup levelogger sample rate levelogger altitude levelogger density levelogger channel id levelogger units levelogger offset image

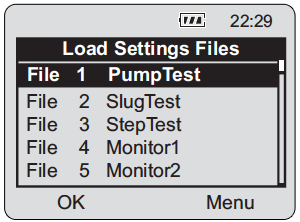

Figure 9-6 Leveloader - Load Settings File Window
