8.1 Real Time - View Only

Note:

If a Mini LT or Black LTC Levelogger are connected, the 'Real Time View Only' function will be replaced by 'Last Readings'. This function will allow the user to only view the last data points recorded by the attached Levelogger

Last Readings Menu (Silver LT)

Real Time Edit Menu (Silver LT)

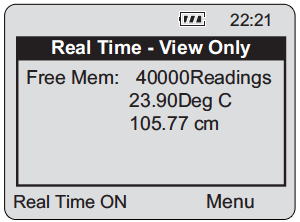

When ‘Real Time - View Only’ is selected from the Levelogger Menu, the Levelogger will take a reading immediately and display it in the LCD screen (Figure 8-2). The display will show the data logger serial number, available memory and the readings from the data logger’s available channels (level, temperature and/or conductivity).

solinst leveloader 8 levelogger gold menu connect to levelogger connect to logger connect to datalogger image

Figure 8-2 Real Time - View Only



solinst leveloader real time view use leveloader to edit levelogger load default levelogger settings edit levelogger settings restart levelogger image

Figure 8-3 Real Time - Edit Menu

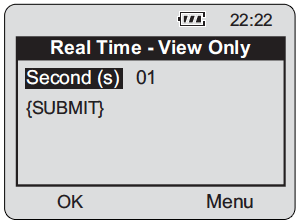

To update the Levelogger readings periodically, select ‘Real Time On’ using the left Chevron Button. When enabled, input a sampling rate (Figure 8-3). Select the time increments: seconds, minutes or hours and then the rate: 1-99. Real Time readings can not be saved.
