Levelogger Programming and Deployment

solinst levelogger deployment options with pc interface cables direct read cables and optical readers

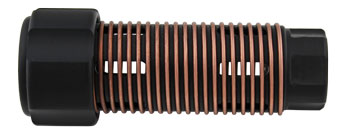

solinst model 3001 biofoul screen antifouling screen for leveloggers

3001 Biofoul Screen

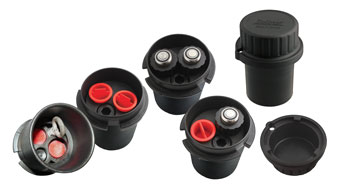

solinst levelogger well cap assembly for 2 inch and 4 inch monitoring wells

The 3001 Well Cap Assembly is designed to fit 2" wells
(or 4" with reducer).



Choose Direct Read deployment if you wish to connect and communicate with your Levelogger in the field, without removing it from the well. Choose wireline or Kevlar cord to minimize costs, and if you do not require communication while the Levelogger is recording down-well.

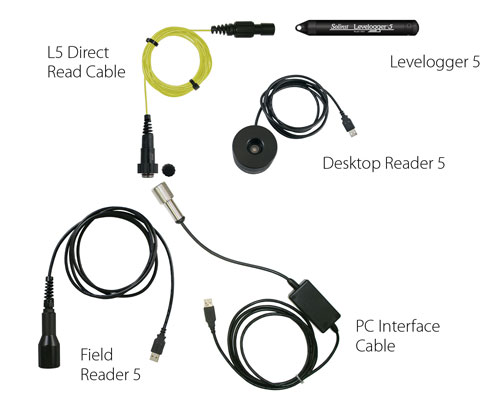

Leveloggers use optical infrared communication. To begin using your Solinst Levelogger, an Optical Reader (USB) for connection to a laptop or desktop PC, and Levelogger Software is required.

The Standard Communication Package is all you need if you are planning to deploy your Leveloggers using wireline or Kevlar cord. The Optical Reader allows you to program your Levelogger before deploying it. Upon retrieval, the Optical Reader is used to download data to your laptop or desktop PC.

If you are deploying your Levelogger using a Direct Read Cable, you will need a Direct Read Communication Package. It comes with the Optical Reader as well as a PC Interface Cable, which connects a Direct Read Cable to a Laptop for communication with a Levelogger while it is still deployed.

Users can also customize their own deployment method based on their application needs, especially surface water applications. A Biofoul Screen provides extra protection against biofouling. Artesian well adaptors are also available.



solinst levelogger dataloggers wireline deployment in wells and boreholes

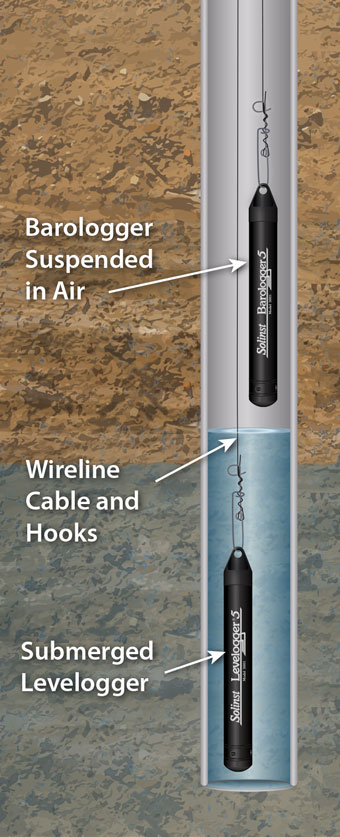

Wireline Deployment

solinst levelogger dataloggers direct read cable deployment in wells and boreholes

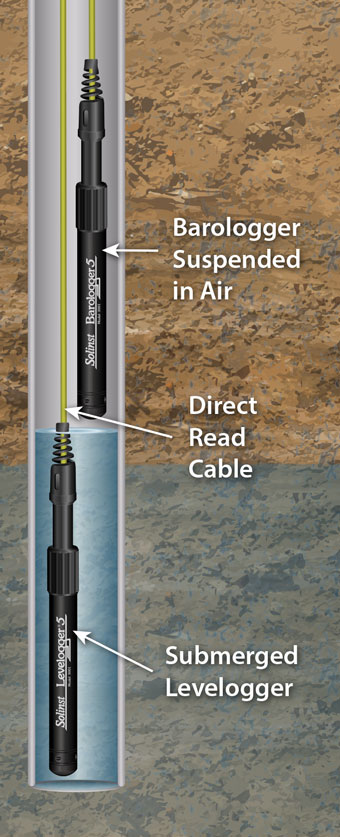

Direct Read Cable Deployment
