Connecting the Communication/Vented Cable

  1. Remove the USB-A Programming Cable from the Sensor.

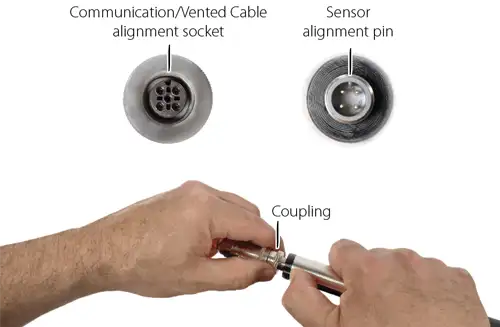

  2. Connect the Communication/Vented Cable to the sensor by lining up the pin and socket. Gently push the connections together and twist slightly until you feel/hear a small click when the properly aligned connection is made. Only tighten the coupling while holding the cable still. Tighten the coupling until it seats.

    3. connecting solinst 301 water level temperature sensor to communication vented cable

    Connecting Solinst 301 Water Level Temperature Sensor to Communication/Vented Cable
