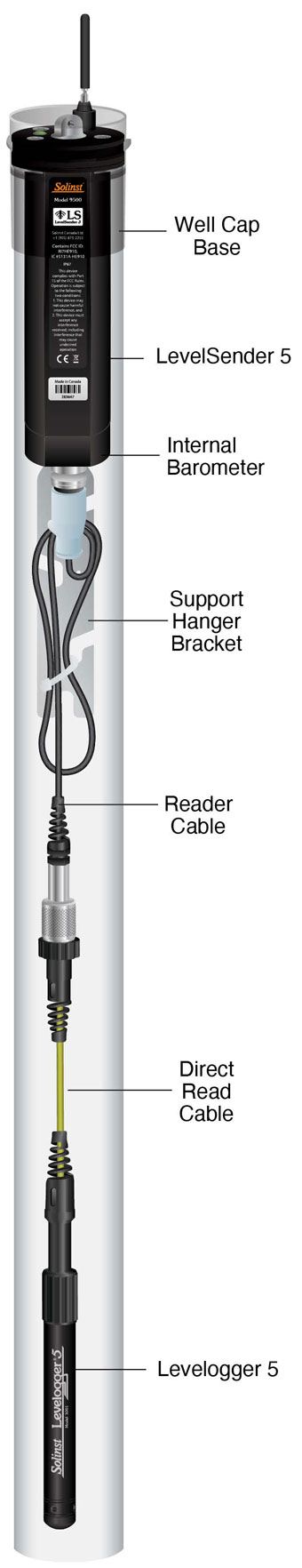

Single Levelogger Installation
- Sized to fit inside a standard 2" well casing
- Internal barometer for automatic water level compensation
- Connection for up to two dataloggers on each device
- Low-cost Solinst Cloud or free LevelSender Software for full user control and data management
- Remote data access via Solinst Cloud or FTP; email/SMS data transmission also available
- Database is automatically updated with each new data report
- Easy programming of independent datalogger recording
- Issue remote diagnostic commands via email from the Home Station or Solinst Cloud
| LevelSender 5 Specifications | |
|---|---|
| Modem: | 4G LTE UE Category M1 device: B1 (2100MHz), B2 (1900MHz), B3 (1800MHz), B4 (AWS 1700MHz), B5 (850MHz), B8 (900MHz), B12 (700MHz), B13 (700MHz), B18 (800MHz), B19 (800MHz), B20 (800MHz), B20 (800MHz), B26 (850MHz), B28 (700MHz) |
| SIM Card: | Standard/Mini SIM (15 mm x 25 mm); option of Solinst SIM or through service provider of client's choice |
| Communication: | Remote access via Solinst Cloud, FTP, email or SMS |
| Antenna: | SMA Male Monopole 2dBi, Higher gain antenna with max. 12dBi can be sourced elsewhere. |
| Optional Antenna: | LTE Omni Wall/Pole Mount 790–960MHz, 1710–2690MHz and 3400–3800MHz with 10ft cable (IP68 seal kit available) |
| Data File Type: | text, .xle, .sqlite |
| Sampling Interval: | 1 minute - 99 hours |
| Reporting Interval: | 5 minutes - 99 hours |
| Schedule Programming: | Directly via USB-C connection on the LevelSender 5 or remotely via LevelSender Software (email) or Solinst Cloud |
| Power Supply: | 3 x AA 1.5V replaceable lithium batteries |
| Battery Life Example: | Hourly sampling and daily reporting: 433 days with 1 datalogger, 429 days with 2 dataloggers |
| Memory Capacity: (Between Reports) | Up to 40,000 LT logs, or 28,000 LTC logs |
| Operating Temperature: | -20ºC to +60ºC |
| IP Rating: | IP67 |
| Materials: | Black Delrin®, 316 stainless steel |
| Size: | 2.5" x 9.375" (with antenna folded down) |
| Weight: | 16.9 oz. (478 grams) |
| Compatible Dataloggers: | Levelogger 5 Series dataloggers, LevelVent 5, as well as previous versions of the LevelVent and Levelogger Edge Series dataloggers |
| Number of Connected Dataloggers: | 1, or 2 using a splitter |
| Barometric Compensation: | Internal barometer for automatic barometric compensation of water level data if a Barologger is not being used (not required for vented loggers) |
| Internal Barometer Range: | 30 kPa – 120 kPa |
| Internal Barometer Accuracy: | ±0.2 kPa (2 cm) |
