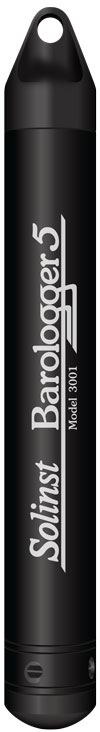

The Barologger 5 uses algorithms based on air pressure only. It measures and logs changes in atmospheric pressure and temperature, which are then used to compensate water level readings recorded by a Levelogger.
Note:
Solinst recommends using the most recent Barologger 5 firmware version with the latest Levelogger Software version. See Section 2.3.
| Barologger 5 Technical Specifications | |
|---|---|
| Level Sensor: | Piezoresistive Silicon with Hastelloy Sensor |
| Accuracy: | ± 0.05 kPa |
| Resolution: | 0.002% FS |
| Normalization: | Automatic Temperature Compensation |
| Temp. Comp. Range: | -10ºC to 50ºC |
| Temperature Sensor: | Platinum Resistance Temperature Detector (RTD) |
| Temp. Sensor Accuracy: | ± 0.05ºC |
| Temp. Sensor Resolution: | 0.003ºC |
| Battery Life: | 10 years (based on 1 reading/minute) |
| Clock Accuracy (typical): | ±1 minute/year (-20ºC to 80ºC) |
| Operating Temperature: | -20ºC to 80ºC |
| Maximum # Readings: | 150,000 sets of readings |
| Memory: | Continuous or Slate mode |
| Communication Speed: | 9600 bps, 57,600 bps with USB |
| Com Interface: | Optical high-speed: USB, SDI-12 |
| Size: | 22 mm x 160 mm (7/8" x 6.3" ) |
| Weight: | 146 grams (5.2 oz.) |
| Corrosion Resistance: | Baked-on coating using polymerization technology (inside and out) and superior corrosion resistant Hastelloy pressure sensor |
| Other Wetted Materials: | Delrin®, Viton®, 316L Stainless Steel |
| Sampling Modes: | Linear, Event & User-Selectable Schedule with Repeat Mode, Future Start, Future Stop, Real Time View |
| Measurement Rates: | 0.125 second to 99 hours |
| Model | Full Scale (FS) | Accuracy | Resolution |
|---|---|---|---|
| Barologger | Air Only | ±0.05 kPa | 0.002% FS |
