8.1.2 Advanced Compensation

When you select Advanced compensation, the Data Compensation Options window will open.

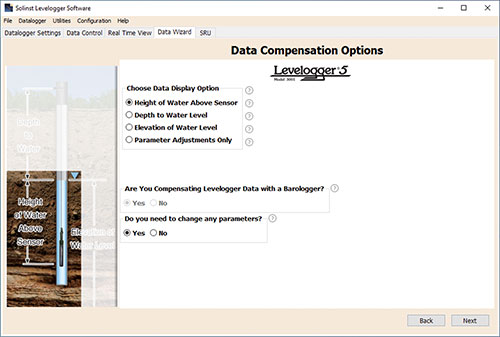

Figure 8-5 Advanced Data Compensation Options

Figure 8-5 Advanced Data Compensation Options
(Click image to enlarge to full size)

First, you will select how you want your data displayed (Manual Data Adjustment):

Note:

Parameter Adjustments Only, is the only option for compensating Rainlogger data.

Next, you will select Yes or No to Barometrically Compensating the data (will not be active if you selected Parameter Adjustments Only).

Next, you will select Yes or No to performing any Parameter Adjustments on the data files (will not be active if you selected Parameter Adjustments Only).

Click Next, after you have selected all of your Data Compensation options.

In the next window, you will choose the Levelogger file(s), Rainlogger file(s), and Barologger file(s) you would like to use in the compensation. Any files you have open in the Data Control tab will be listed.

Note:

See Section 8.1.1 for more information on selecting files for Barometric compensation.

Use the directory on the left of the window or click directory buttonto open any other data files you would like to compensate. Ensure the files you want to compensate are highlighted in the list. If doing a Barometric Compensation, ensure the Barologger file is highlighted. Do this by clicking the file name. To de-select a file, click again. Select Next to continue.

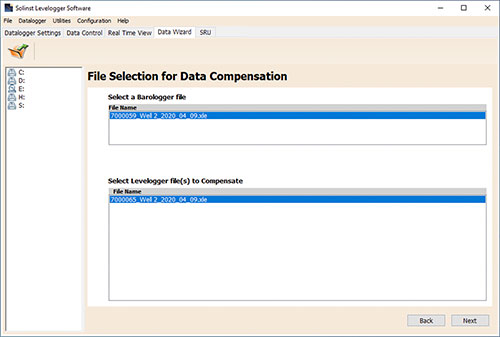

Figure 8-6 Selecting Files for Compensation

Figure 8-6 Selecting Files for Compensation
(Click image to enlarge to full size)

Note:

When adjusting Units for Levelogger files or Rainlogger files, If you select apply to all, the same unit change will be applied to all of the files being compensated at that time.

If you have selected yes to Parameter Adjustments, or selected the Parameter Adjustments Only option, in the next window you will enter these. You can expand the window by clicking “>>” to show additional adjustment options. If you did not select to change any parameters, this window will not be shown.

Note:

To show Additional Parameters that can be adjusted, click on the ".>>" icon.

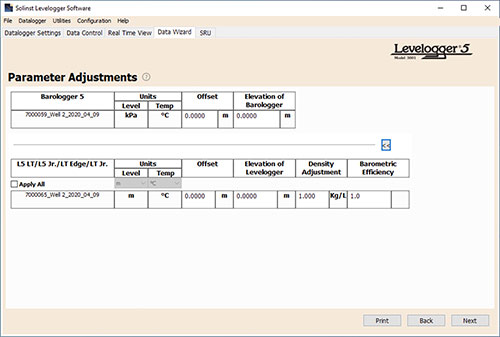

Figure 8-7 Parameter Adjustments

Figure 8-7 Parameter Adjustments
(Click image to enlarge to full size)

Next, for each selected Levelogger file, you will enter the Field Zero(s) you would like to use to manually adjust your Levelogger data. (If you have selected Height of Water Above the Sensor or Parameter Adjustments Only, this window will not be shown.)

Note:

The date and time of measurement of the Field Zero must be recorded to complete the adjustment. The Field Zero must replace an actual reading the Levelogger file. I.e. take a manual measurement immediately after starting the Levelogger, and note that time.

For Depth to Water Level adjustments, enter a Field Zero (A). If the static water level is below your Field Zero measurement, the Field Zero is input as a positive value (e.g. a manual water level meter measurement taken from the top of a well casing. See Example 8.1). If the static water level is above your Field Zero, the Field Zero is input as a negative value (such as in an artesian condition).

The Time the Field Zero measurement was taken must replace an actual reading in the Levelogger file. This is selected from the drop-down menu showing all time stamps in the Levelogger file. Click ‘Add’ to apply the adjustment. If you need to change a Field Zero, click ‘Update’ after any edits.

Figure 8-8 Manual Data Adjustment - Depth to Water Level

Figure 8-8 Manual Data Adjustment - Depth to Water Level
(Click image to enlarge to full size)

Figure 8-8 Manual Data Adjustment - Depth to Water Level

(Click image to enlarge to full size)

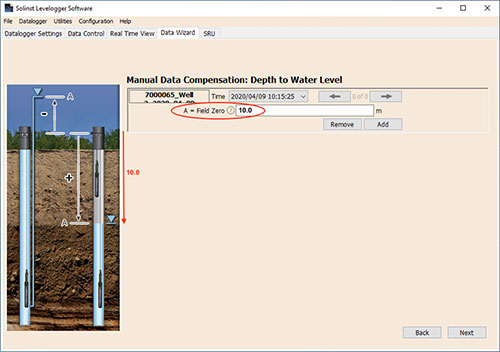

Example 8.1 Depth to Water Level Adjustment

When using a manual depth to water measurement taken from the top of a well casing as a Field Zero, enter it as a positive value (e.g. 10 m).


In your adjusted data file, your readings will increase in value as the water level decreases. This is because the depth to static water level from the top of the well casing is increasing. The adjusted readings will decrease in value as the static water level rises.


Original Levelogger Data (barometrically compensated height of water above sensor)
8.75 m 8.50 m 8.75 m 9.0 m 9.25 m

Adjusted Levelogger Data (depth to water)
(A) 10.0 m 10.25 m 10.0 m 9.75 m 9.50 m



For Elevation of Water Level adjustments, enter a Measuring Point Elevation (A) and a Field Zero (B) from that Measuring Point.

If the static water level is below your Measuring Point, the Field Zero is input as a positive value (e.g. if you are using a manual depth to water measurement as a Field Zero, from the top of a well casing as the Measuring Point).

If the static water level is above your Measuring Point, the Field Zero is input as a negative value (such as an artesian condition). The Measuring Point elevation may also be entered as a negative value.

Note:

The date and time of measurement of the Field Zero must be recorded to complete the adjustment. The Field Zero must replace an actual reading the Levelogger file. I.e. take a manual measurement immediately after starting the Levelogger, and note that time.

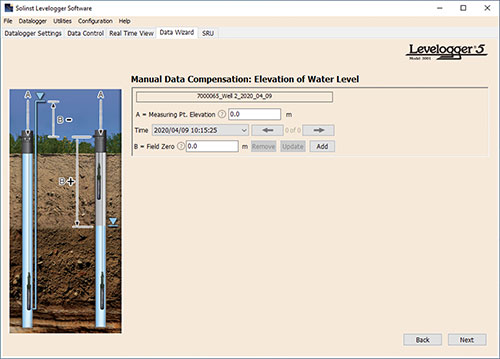

Figure 8-9 Manual Data Adjustment - Elevation of Water Level

Figure 8-9 Manual Data Adjustment - Elevation of Water Level
(Click image to enlarge to full size)

The Time the Field Zero measurement was taken, must replace an actual reading in the Levelogger file, and is selected from the drop-down menu showing all time stamps in the Levelogger file. Click ‘Add’ to apply the adjustment. If you need to change a Field Zero, click ‘Update’ after any edits.

You can make multiple adjustments to one data file by selecting ‘Add’ again to enter another Field Zero. All readings after this Time, will be adjusted to this second measurement. You can add as many adjustments to one Levelogger data file as you would like (as long as it doesn't exceed the total number of readings in that file).

Select Next to complete the compensation.

The compensated data will automatically be saved in a new *.xle file. The default file name will be the <original Levelogger file name> with the word <compensated> added to the file name prefix. Alternatively, the user can rename the compensated file by saving it in the Data Control tab. Do not change or delete the file extension. All data files are saved to the default location:
<C:\Program Files\Solinst\Levelogger4_3\Data>.

Note:

All data files are saved to the default location: <C:\Program Files\Solinst\ Levelogger4_3\ Data>. However, the default directory for saved files can be changed by clicking the Configuration menu at the top of the program window, selecting 'Application Settings' and inputting or navigating to a different folder destination.

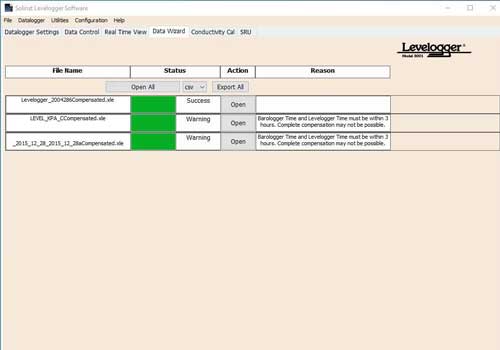

The next window will show the results of the compensation. If the compensation was unsuccessful, there will be an explanation in the Reason column (e.g. time stamp of Levelogger and Barologger files were not close enough to perform an accurate compensation). You can still view the compensated file in the Data Control tab, by clicking ‘Open’ in the Action column. If the compensation is successful, select ‘Open’, to view the compensated data file in the Data Control tab.

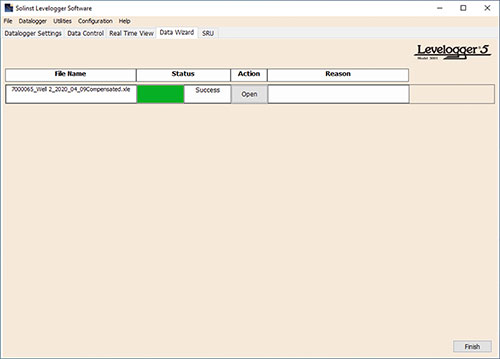

Figure 8-10 Advanced Data Compensation Results

Figure 8-10 Advanced Data Compensation Results
(Click image to enlarge to full size)



From the Data Control tab, you can view the data, save the compensated file with a new filename and/or export the data (see Section 7).

All the original Levelogger settings and the channel information effective during data collection are shown on the top left of the window. The bottom left sections of the window are used to display the compensation information. The middle section displays information from the Barologger, and the bottom section includes information about manual data and parameter adjustments.

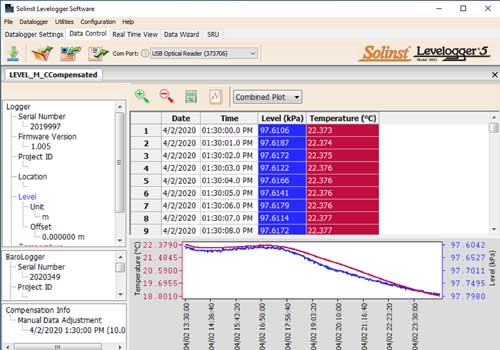

Figure 8-11 Viewing Compensated Files in the Data Control Tab

Figure 8-11 Viewing Compensated Files in the Data Control Tab
(Click image to enlarge to full size)
