In the SolSat 5 Main Screen, the current readings from the SolSat 5 will be displayed, including:
SolSat Baro Pressure: the barometric pressure reading from the internal SolSat barometer
Solinst Datalogger Pressure: pressure reading from the connected Solinst datalogger.
Water Depth: the current depth of water calculated by subtracting the barometric pressure from the datalogger pressure.
Water Temp: the temperature reading from the connected Solinst datalogger.
SolSat Battery: the current voltage of the SolSat 5 batteries.
Note:
The batteries are fully charged at 4.2 volts, at 3.4 volts the SolSat 5 needs to be recharged.
Ambient Temp: the temperature reading from the internal SolSat thermometer.
LTC Levelogger Conductivity: the conductivity reading from an LTC Levelogger, if connected.
Level min: the minimum water level recorded in the last day (Plan 1).
Level max: the maximum water level recorded in the last day (Plan 1).
The status of the satellite, including network availability and time, is also displayed. The GPS coordinates, and satellite and positioning information is also listed.

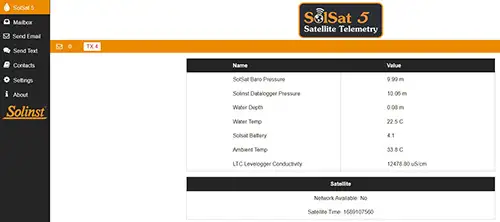

Figure 3-2 SolSat 5 Wi-Fi App Main Screen
