7 Viewing Site Data

Access Database

Note:

The Access database can be queried by your own macros or applications, to automatically check for updates and display the data in your own program, on a website, or in any way you choose.

Data received in each report from a RRL Gold Station is placed in a Microsoft® Access® database (.mdb files) on the Home Station computer. New data is appended to the existing database. The program will save data downloaded to the following default directory: <C:\Program Files\Solinst\STS_Gold\db>

solinst rrl view access database microsoft access database for rrl and sts telemetry systems view telemetry database view rrl database image

Figure 7-1 RRL Gold Database Folder



solinst rrl view access database microsoft access database for rrl and sts telemetry systems view telemetry database view rrl database image

Figure 7-2 RRL Gold Access Files



solinst rrl view access database microsoft access database for rrl and sts telemetry systems view telemetry database view rrl database image

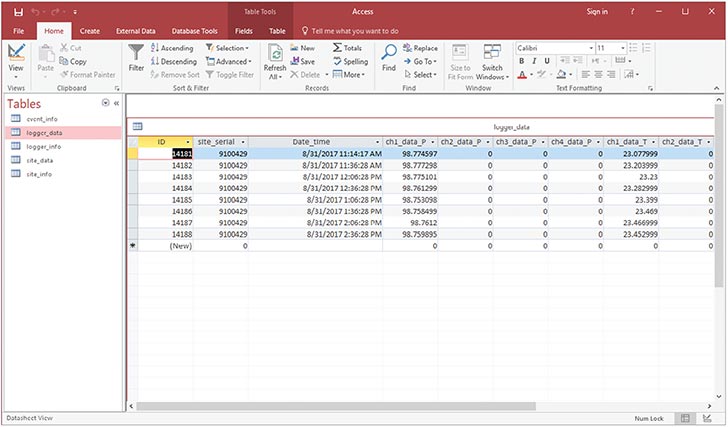

Figure 7-3 RRL Gold Access Data
