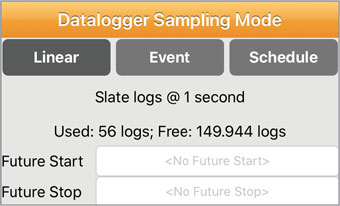

Figure 6-7 Datalogger Sampling Mode - iOS

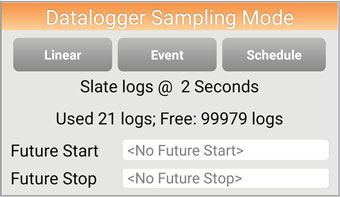

Figure 6-8 Datalogger Sampling Mode - Android
The Datalogger Sampling Mode section allows you to choose the sampling measurement type. Options are Linear, Event, or Schedule. The final sampling mode that is Saved for the connected datalogger will be displayed. The number of used and free logs in the datalogger memory will also be displayed. Please refer to Table 6-1 for a summary of the available sampling and memory options for each datalogger type.
Note:
To refresh the settings, pull down/swipe the top of the Solinst Levelogger App screen (from the Identification title bar).
| Datalogger Programming Options | |||
|---|---|---|---|
| Datalogger Type | Sampling Options | Memory Capacity | Battery Life |
| Levelogger 5 | Linear (0.125 second to 99 hours), Event Based, Schedule, Repeat Schedule, Real Time View, Future Start/Stop | 1500,000 sets of readings in Slate or Continuous Mode | 10 years based on 1 reading per minute |
| Barologger 5 | Linear (0.125 second to 99 hours), Event Based, Schedule, Repeat Schedule, Real Time View, Future Start/Stop | 1500,000 sets of readings in Slate or Continuous Mode | 10 years based on 1 reading per minute |
| Levelogger 5 Junior | Linear (0.5 second to 99 hours), Real Time View, Future Start | 75,000 sets of readings in Slate or Continuous Mode | 5 years based on 1 reading per minute |
| Levelogger 5 LTC | Linear (2 seconds to 99 hours), Event Based, Schedule, Repeat Schedule, Real Time View, Future Start/Stop | 100,000 sets of readings in Slate or Continuous Mode | 8 years based on 1 reading every 5 minutes |
| Rainlogger 5 | Event Based (records tips from tipping-bucket rain gauge), Real Time View, Future Start | Up to 100,000 tip time logs in Slate or Continuous Mode | 10 years based on 2 parameters logged every 10 minutes |
| LevelVent 5 | Linear (0.125 second to 99 hours), Event Based, Schedule, Repeat Schedule, Real Time View, Future Start/Stop | 1500,000 sets of readings in Slate or Continuous Mode | 10 years based on 1 reading per minute |
| AquaVent 5 | Linear (0.125 second to 99 hours), Event Based, Schedule, Repeat Schedule, Real Time View, Future Start/Stop | 1500,000 sets of readings in Slate or Continuous Mode | 8 years based on 1 reading per minute |
Table 6-1 Solinst Datalogger Programming Options
