2.5 SRU Status

To view information on the SRU status use the arrows to navigate to the Status/Setup menu, then select SRU Status. The SRU's serial number, memory status, and firmware version will be displayed.

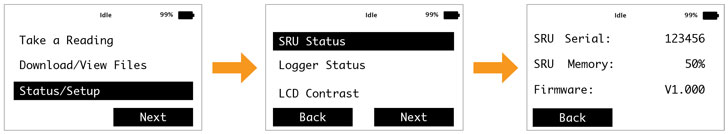

solinst readout unit sru status menu

Figure 2-5 SRU Status



An error message on the SRU screen will indicate when the memory is full.
