7.3 File Export

solinst rrl user guide 7 3 file export exporting csv files from rrl software exporting lev files from rrl software export levelogger data file from rrl software exporting rrl files accessing rrl files image

solinst rrl user guide 7 3 file export exporting csv files from rrl software exporting lev files from rrl software export levelogger data file from rrl software exporting rrl files accessing rrl files image

Data can be exported in *.csv (comma separated value), *.xle or *.lev (Levelogger) file formats by clicking “Export Data” while viewing the site data. The *.csv file format is supported and can be imported by most spreadsheet programs, *.xle and *.lev files can be imported by Levelogger Software (only version 4.0 and up for *.xle files), where data compensations can be performed.

Clicking solinst rrl user guide 7 3 file export exporting csv files from rrl software exporting lev files from rrl software export levelogger data file from rrl software exporting rrl files accessing rrl files image will display a drop down menu where you can select to export as a *.csv, *.xle or *.lev file.

Exporting as a *.csv file will export all of the data from the selected site. You can save this file where you choose and give it a unique file name.

solinst rrl user guide 7 3 file export exporting csv files from rrl software exporting lev files from rrl software export levelogger data file from rrl software exporting rrl files accessing rrl files image

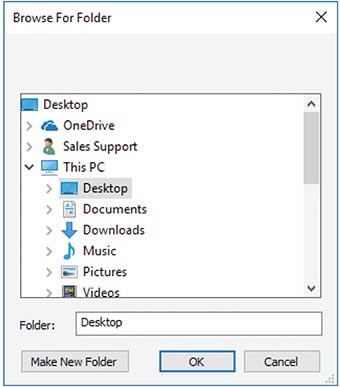

Figure 7-9 Save Exported File

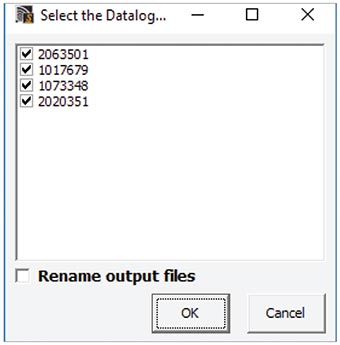

Exporting as a *.xle or *.lev file, allows you to select a specific Levelogger File. Choose the desired file from the list. The file name will include the datalogger serial number, and can be saved in a folder of your choice. This file can be imported by the Levelogger Software, where barometric and other compensations can be performed. (See Levelogger User Guide for more information).

solinst rrl user guide 7 3 file export exporting csv files from rrl software exporting lev files from rrl software export levelogger data file from rrl software exporting rrl files accessing rrl files image

Figure 7-10 Saving Levelogger Data
