6 Hardware

Note:

Do not open the Leveloader case. Opening the unit will void the manufacturer's warranty.

Figure 6-1 illustrates the Leveloader Gold and the key functions of each component.

solinst leveloader hardware setup leveloader hardware setup image

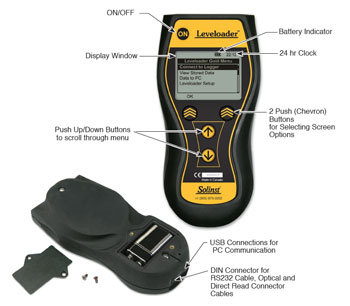

Figure 6.1 Leveloader Gold

Bottom View showing Connections

Note:

Leveloader Gold uses a 9V battery. If the battery gauge on the Leveloader is low, replace the battery with either an alkaline or lithium. Access the battery by unscrewing the battery hatch.

solinst leveloader hardware setup leveloader hardware setup image

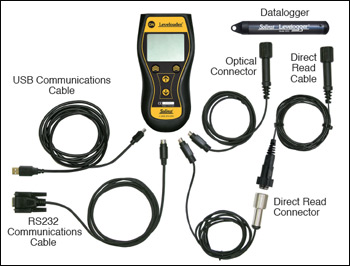

Figure 6-2 Leveloader Gold Connections
