Locking Well Caps for Leveloggers

Locking Well Caps

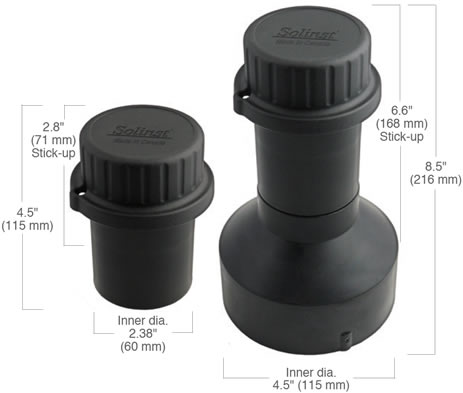

A locking well cap, designed to support both 2" and 4" wells (using an Adaptor). This versatile, vented well cap is available in two configurations. The first is designed to support our Levelogger Series of products, the second is designed to support our Bladder Pumps and Double Valve Pumps. Solinst Locking Well Caps are convenient, durable, and suitable for numerous other applications and installation types.



solinst levelogger levelogger locking well caps levelogger caps levelogger wellhead levelogger well head pressure transducer well caps datalogger well caps 2 inch well caps 4 inch well caps 2 inch diameter well caps 4 inch diameter well caps image

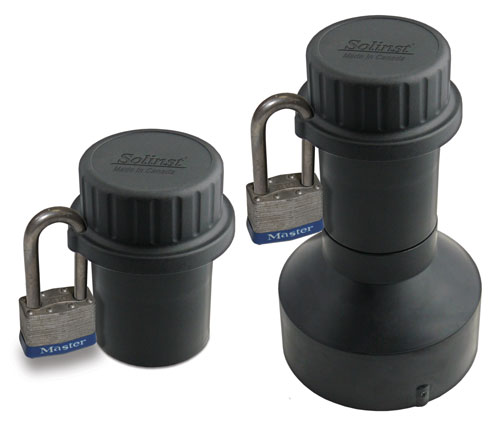

Well Caps can be permanently secured to the well casing using screws and the cap securely locked using a 3/8" (9.5 mm) shackle diameter lock



solinst levelogger levelogger locking well caps levelogger caps levelogger wellhead levelogger well head pressure transducer well caps datalogger well caps 2 inch well caps 4 inch well caps 2 inch diameter well caps 4 inch diameter well caps image





Levelogger Installation Well Cap

The Model 3001 Levelogger Well Cap Assembly is designed to fit 2" wells (or 4" wells with an Adaptor), and provides options for installing Leveloggers with wireline, Kevlar cord, or using a Direct Read Cable.

When installing Leveloggers using a stainless steel wireline or Kevlar cord suspension, the water level dataloggers are securely supported when tied off to the eyebolt included on the underside of the well cap insert.

When installing Leveloggers using a Direct Read Cable, the cable simply fits inside the well cap insert hole, when the red dust cap is removed. For Levelogger installations where a Barologger is intended to be installed in the same well, the well cap supports up to two Direct Read Cables. Even with two Direct Read Cables installed, there is still an access hole available for manual water level measurements or groundwater sampling, without disturbing the down-hole Leveloggers.



solinst levelogger levelogger locking well caps levelogger caps levelogger wellhead levelogger well head pressure transducer well caps datalogger well caps 2 inch well caps 4 inch well caps 2 inch diameter well caps 4 inch diameter well caps image

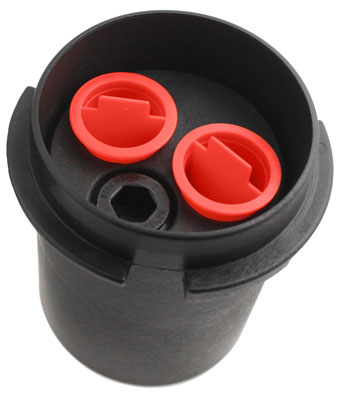

Standard 2" Locking Well Cap with dust plugs - Top View

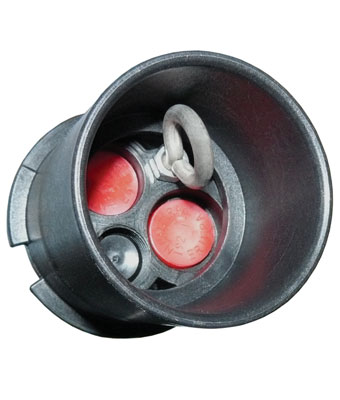

Bottom View shows eyebolt used to secure pumps and Leveloggers

Bottom View shows eyebolt used to secure pumps and Leveloggers


solinst levelogger levelogger locking well caps levelogger caps levelogger wellhead levelogger well head pressure transducer well caps datalogger well caps 2 inch well caps 4 inch well caps 2 inch diameter well caps 4 inch diameter well caps image

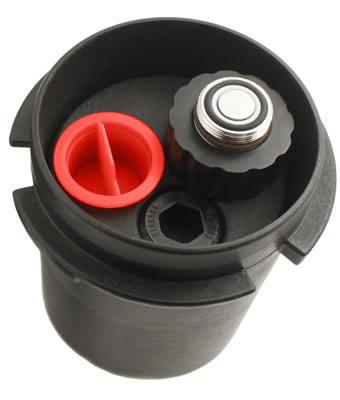

Well Cap with Single Levelogger Direct Read Cable Installed (two additional access holes available for monitoring)


solinst levelogger levelogger locking well caps levelogger caps levelogger wellhead levelogger well head pressure transducer well caps datalogger well caps 2 inch well caps 4 inch well caps 2 inch diameter well caps 4 inch diameter well caps image

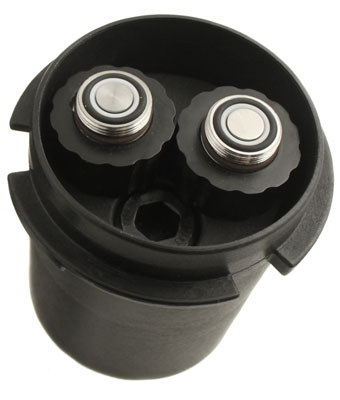

Well Cap with Two Levelogger Direct Read Cables Installed (one additional access hole available for monitoring)



Levelogger Well Cap Advantages
