1.5.1.3 Connecting to the Logger

solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image

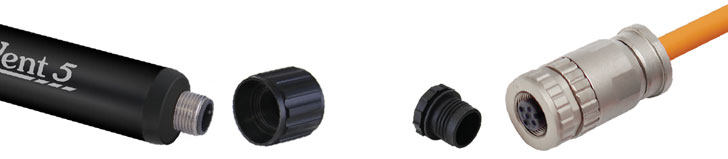

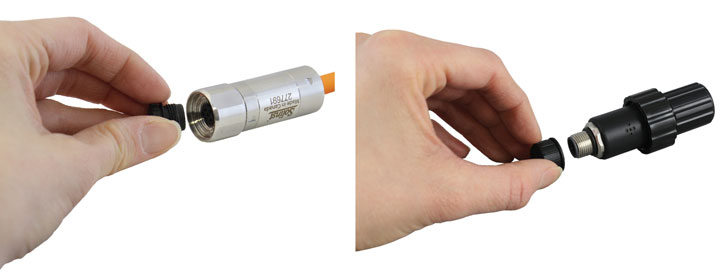

Remove the storage caps from the connectors on the logger and other end of the Vented Cable.



Note:

Ensure you save all the storage caps for future use.





solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image

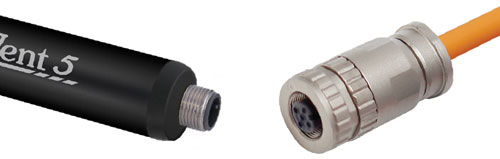

Line up the alignment pin in the logger connector with the alignment socket in the Vented Cable connector. Carefully push the connectors together. Twist the cable connector slightly; you will feel a small click when the properly aligned connection is made.



solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image

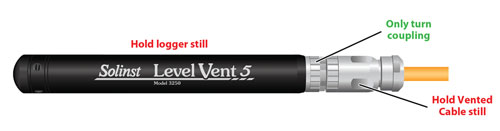

Tighten the stainless steel coupling while holding the stainless steel cable connector body still. Tighten the stainless steel coupling until it seats. Do not twist the Vented Cable or the logger.



Figure 1-11 Connecting a Vented Cable to the Logger



Note:

Do not twist the Vented Cable or stainless steel cable connector body when connecting to a Wellhead or AquaVent logger. Only twist the stainless steel coupling.
