3.2 Datalogger Connection

Up to four Solinst dataloggers can be connected to one STS Edge.



3.2.1 Levelogger Connection

Leveloggers are connected to the STS Edge Telemetry System using a Reader Cable and Direct Read Cable.

The Reader Cables are attached to the STS Edge using a two-wire connection. The black and white triangles shown at the connections, indicate which colour wire from the Reader Cable to connect. Simply push the connector pins on each wire into the appropriate opening.

The Reader Cable is then connected to the Levelogger's Direct Read Cable by twisting the Reader Cable coupling onto the Direct Read Cable connector.

Note:

A Direct Read to Optical Adaptor can be used in place of a Direct Read Cable when installing a Barologger. The Adaptor can not be submerged.

Note:

See the Levelogger User Guide for more information on connecting Direct Read Cables to your Leveloggers.

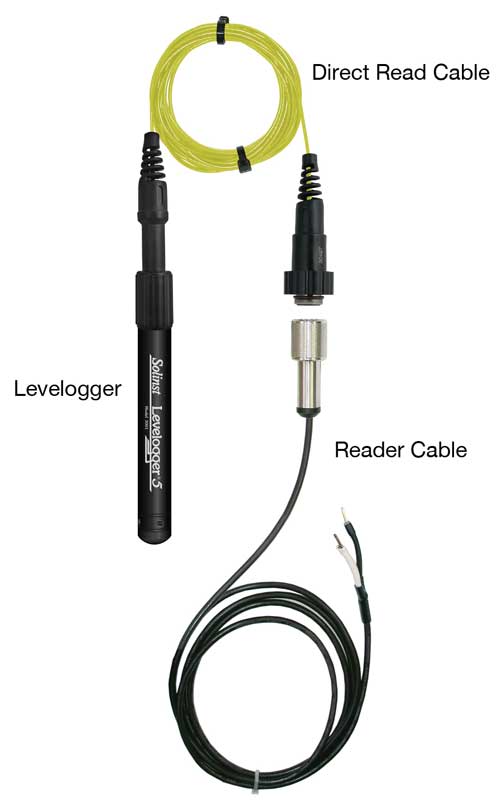

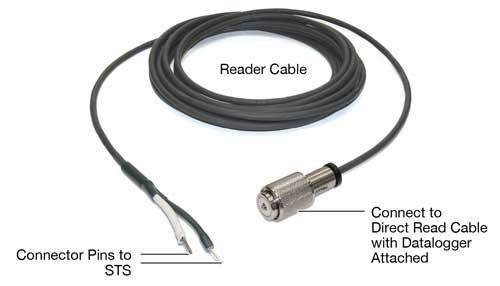

solinst sts edge levelogger connection

Figure 3-5 Levelogger Connection



Note:

To remove the Reader Cable connector pins from the STS Edge, press the white plugs above each connection into the STS Edge, while pulling the connector pins out.



3.2.2 LevelVent Connection

LevelVent dataloggers are connected to the STS Edge using a Reader Cable connected to the LevelVent Wellhead.

The Reader Cables are attached to the STS Edge using a two-wire connection. The black and white triangles shown at the connections, indicate which colour wire from the Reader Cable to connect. Simply push the connector pins on each wire into the appropriate opening.

The Reader Cable is then connected to a LevelVent Wellhead by twisting the Reader Cable coupling onto the Wellhead.

Note:

See the Vented Dataloggers User Guide for more information on connecting LevelVent loggers to the LevelVent Wellhead using Vented Cables.

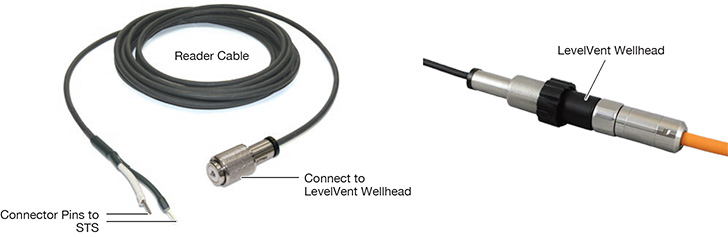

solinst sts edge levelogger connection

Figure 3-6 LevelVent Connection

Note:

To remove the Reader Cable connector pins from the STS Edge, press the white plugs above each connection into the STS Edge, while pulling the connector pins out.



3.2.3 AquaVent Connection

AquaVent dataloggers are connected to the STS Edge using a Reader Cable connected to an AquaVent Wellhead Connector Cable.

The Reader Cables are attached to the STS Edge using a two-wire connection. The black and white triangles shown at the connections, indicate which colour wire from the Reader Cable to connect. Simply push the connector pins on each wire into the appropriate opening.

The Reader Cable is then connected to and AquaVent Wellhead Connector Cable by twisting the Reader Cable coupling onto the Wellhead Connector Cable. The Wellhead Connector Cable connects to the 10-pin connection on the AquaVent Wellhead.

Note:

See the Vented Dataloggers User Guide for more information on connecting AquaVent loggers to the AquaVent Wellhead using Vented Cables.

solinst sts edge aquavent connection

Figure 3-7 AquaVent Connection

Note:

To remove the Reader Cable connector pins from the STS Edge, press the white plugs above each connection into the STS Edge, while pulling the connector pins out.
