6 Conductivity Calibration Setup

  1. Setup: The Levelogger Software requires the user to choose the calibration solutions. You can choose up to three solutions for a multipoint calibration of the LTC Levelogger Edge. Ensure the solutions are ready in the calibration beaker or container. Start the calibration by selecting Next.

Note:

To obtain the highest accuracy, choose the calibration solution(s) closest to your expected conductivity.

Use a two point calibration for waters between 1,413 μS/cm and 12,880 μS/cm.

Use a one point 1,413 μS/cm calibration for waters less than 1,413 μS/cm.

Use a one point 12,880 μS/ cm/80,000 μS/cm calibration for waters greater than 12,880 μS/cm /80,000 μS/cm.

solinst ltc levelogger edge calibration setup conductivity calibration setup ltc levelogger edge calibration setup image

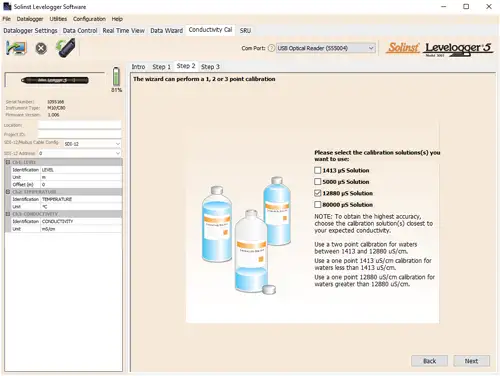

Figure 6-4 LTC Levelogger Calibration Wizard Step 2
