8.5 Load Levelogger Settings Files

To use this feature, the ‘Levelogger Settings Files’ must be pre-programmed using Levelogger PC Software. Details provided in section 9.1.

Once selected, a list of up to 10 customizable settings are shown (Figure 8-10). By using the Up/Down buttons, the user can select one of the settings and send it directly to the attached Levelogger. A confirmation message will follow. Then scroll down to restart the Levelogger

solinst leveloader 8.5 load levelogger settings files load settings files load levelogger settings files into leveloader image

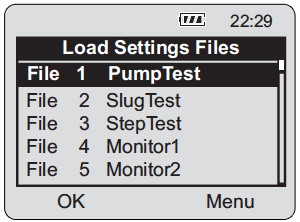

Figure 8-10 Load Settings Files Menu
