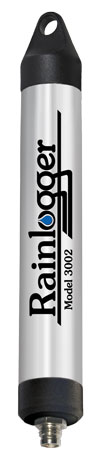

The Rainlogger is designed for use with most standard tipping-bucket rain gauges with a reed switch output. It records each tip time from the tipping-bucket, and outputs the amount of rainfall per programmed time period (based on rainfall calibration constant).
Note:
Solinst recommends using the most recent Rainlogger firmware version with Levelogger Software Version 4.4.0. See Section 2.3. If using a firmware version prior to version 2.000, the Rainlogger will function differently (See previous Levelogger User Guide).
| Rainlogger Technical Specifications | |
|---|---|
| Battery Life: | 10 years (logging 2 parameters/10 minutes) |
| Clock Accuracy: | ± 1 minute/year |
| Operating Temperature: | -20˚C to 80˚C |
| Maximum # Readings: | Up to 60,000 tip times |
| Memory: | Slate mode |
| Communication: | Optical infra-red: USB, RS-232, SDI-12 |
| Measurement: | Records each tip by the tipping-bucket rain gauge and outputs the amount of rainfall |
| Sampling Mode: | Event Based, Future Start, Real TIme View |
| Size: | 22 mm x 175 m (7/8" x 7") |
| Weight: | 135 grams (4.8 oz) |
| Materials: | 316L Stainless Steel, Delrin®, Viton® |
