STS Edge Telemetry System Features & Specifications

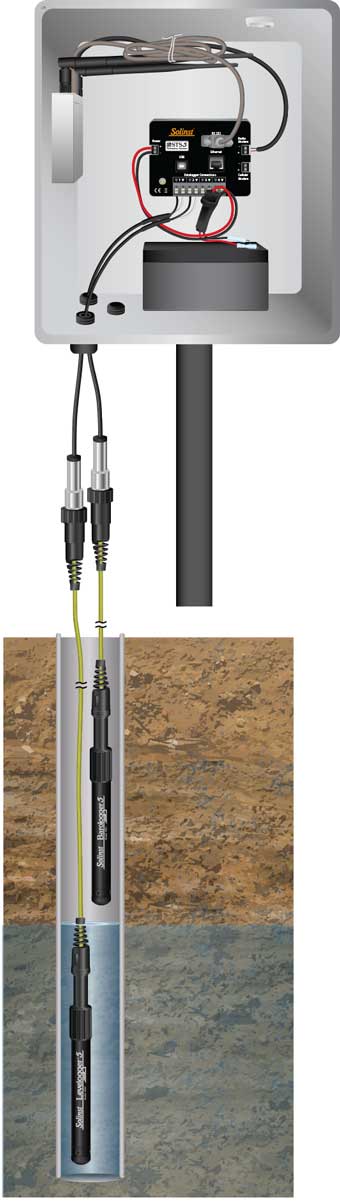

solinst sts telemetry systems for remote water level datalogging illustration

STS Edge Remote Station

STS Edge Specifications
Modem: Digi TransPort® WR21 GSM Cellular Modem for 2.5G/3G/4G cellular network, including LTE, HSPA, HSPA+ and 1xRTT
Communication: Static IP at Home Station PC and Dynamic IP at remote STS Edge, e-mail alarm notifications
Antennas: 3G/4G/LTE (699-960/1710-2690 MHz), 3 dBi, SMA connection
Data File Type: .mdb (database), .xle, .lev or .csv (exported)
Sampling Interval: 10 seconds - 99 hours
Reporting Interval: 5 minutes - 1 week
Schedule Programming: Initial setup and remote updates done through Solinst Telemetry Software at Home Station
Power Supply: 12V, 12-30 AHr deep-cycle, rechargeable sealed lead-acid battery
Optional Power Input: 10V - 16V DC, 15W
Battery Life Example:
(4 dataloggers)
1 year: based on hourly sampling and daily reporting
Memory Capacity:
(Between Reports)
16 MB
Operating Temperature: -30ºC to 50ºC
Optional Enclosure: NEMA 4X (IP66: dust and water proof, can not be submerged)
Compatible Dataloggers: Levelogger Edge, Barologger Edge, Levelogger Junior Edge, LTC Levelogger Edge, Rainlogger Edge, LevelVent, and AquaVent, as well as Levelogger Gold, Barologger Gold, Levelogger Junior, LTC Levelogger Junior and Rainlogger
Number of Connected dataloggers: 4
Barometric Compensation: Using a connected Barologger, automatically performed in Solinst Telemetry Software or by user in external database



RRL (Remote Radio Link) Integration

You can expand your telemetry system by connecting a Solinst RRL network to a STS Edge Remote Station. A closed-loop network of RRL radios reports data to the STS Edge; all data is then sent to the Home Station via the STS Edge GSM modem. Up to four dataloggers can be connected to each RRL. (See Model 9200 Data Sheet.)



STS Edge Alarms and Diagnostics

An e-mail alarm notification will be sent automatically to the Home Station if a low battery condition is detected. The Home Station then sends out email alerts, as set up in the software. High, low and percent change alarms can also be set for each datalogger (e.g. water level, temperature, rainfall, or conductivity).

Along with water level, temperature, barometric, conductivity, and rainfall data, the Home Station is updated with battery level and status of the STS Edge and dataloggers with each data report.
