Hardware Setup

1) Getting Started

Before you can begin using your LevelSender, you need to set up the following:



solinst levelsender solinst levelsender getting started with levelsender connecting antenna to levelsender connect antenna to levelsender connect antenna to solinst levelsender installing levelsender batteries install levelsender batteries installing solinst levelsender batteries connecting dataloggers to levelsender connecting leveloggers to levelsender installing levelsender sim card installing sim card into levelsender image

2) Connect the Antenna

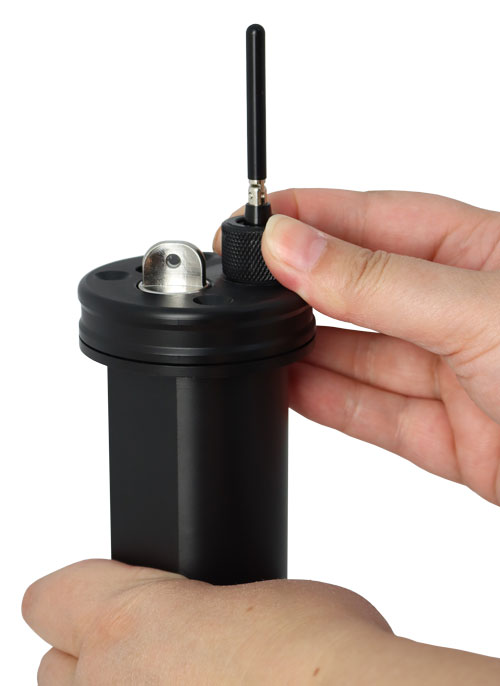

To attach the antenna, line up the connector and screw it onto the connection on the top of the LevelSender. The antenna bends to accommodate well cap installation.



3) Install the Batteries

solinst levelsender solinst levelsender getting started with levelsender connecting antenna to levelsender connect antenna to levelsender connect antenna to solinst levelsender installing levelsender batteries install levelsender batteries installing solinst levelsender batteries connecting dataloggers to levelsender connecting leveloggers to levelsender installing levelsender sim card installing sim card into levelsender image

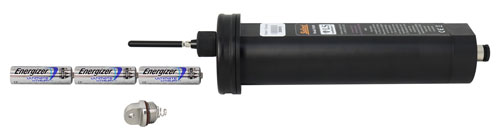

A LevelSender uses three 1.5V AA user-replaceable lithium batteries. To install the batteries:

  1. Unscrew the stainless steel cap from the LevelSender.
  2. Install the three batteries with the positive ends first/down.
  3. Replace the stainless steel cap.



4) Connect Dataloggers

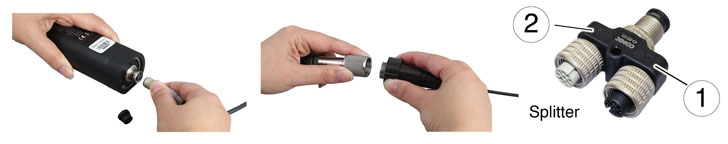

Each LevelSender has a single port to connect one datalogger, or a Splitter. A Splitter provides a second datalogger connection.

  1. Thread the Levelogger onto a Direct Read Cable.
  2. Connect the Direct Read Cable to the Reader Cable.
  3. Ensure the pins are lined up, and connect the Reader Cable directly to the LevelSender or Splitter.

Note:

When using a Splitter, the number 1 or 2 will identify the Dataloggers in LevelSender Software. The numbers are labeled directly on the Splitter.

solinst levelsender solinst levelsender getting started with levelsender connecting antenna to levelsender connect antenna to levelsender connect antenna to solinst levelsender installing levelsender batteries install levelsender batteries installing solinst levelsender batteries connecting dataloggers to levelsender connecting leveloggers to levelsender installing levelsender sim card installing sim card into levelsender image



5) Install the SIM Card

solinst levelsender solinst levelsender getting started with levelsender connecting antenna to levelsender connect antenna to levelsender connect antenna to solinst levelsender installing levelsender batteries install levelsender batteries installing solinst levelsender batteries connecting dataloggers to levelsender connecting leveloggers to levelsender installing levelsender sim card installing sim card into levelsender image

  1. Use a Phillips screwdriver to remove the three screws from the top of the LevelSender.
  2. Gently pull off the top cap of the LevelSender. Be careful not to pull the antenna wire more than a few inches out from the top of the LevelSender.

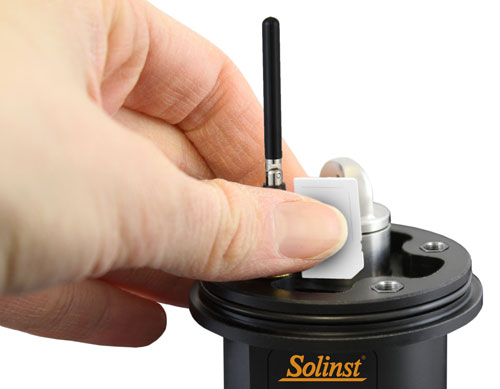

  3. Insert the SIM card into the slot in the top of the LevelSender, as shown in the photo.
