3.0 MODBUS Wiring Setup and Installation

With the sensor connected (see Section 1.4.1), refer to the wiring diagrams below for correct connection of the Communication/Vented Cable to the MODBUS controller, including external power (10 – 30V).


3.1 MODBUS Wiring Connection

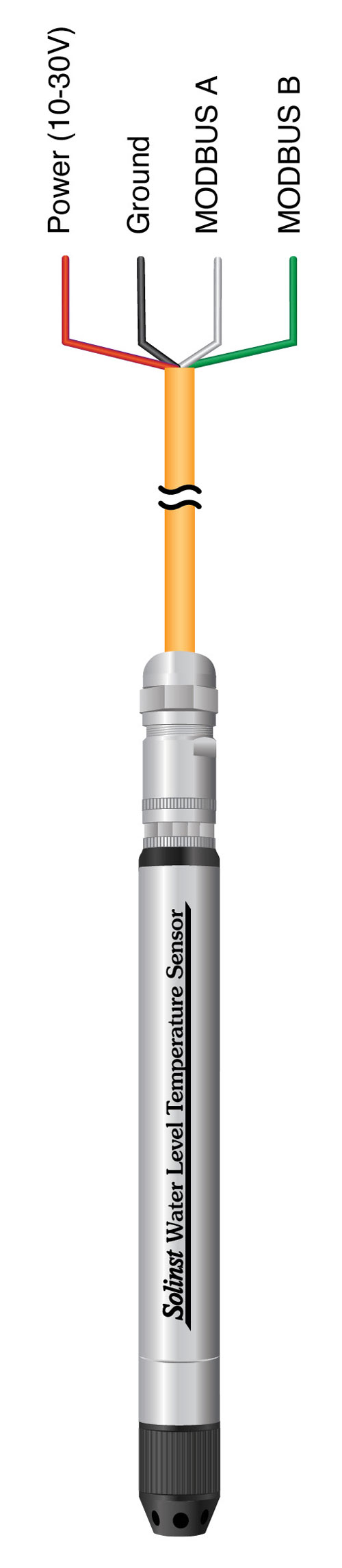

solinst water level temperature sensor modbus wiring overview

Figure 3-1 MODBUS Wiring Overview
