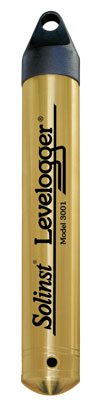

Levelogger Gold Series: Levelogger Gold
The Levelogger Gold is an absolute (non-vented) datalogger, which measures groundwater and surface water levels and temperature. Water levels are displayed as temperature compensated pressure readings, and can be barometrically compensated with the aid of a Barologger.
| Levelogger Gold Technical Specifications | |
|---|---|
| Level Sensor: | Piezoresistive Silicon in 316L Stainless Steel |
| Ranges: | 15, 30, 65, 100, 300 ft. (5, 10, 20, 30, 100 m) |
| Accuracy: | 0.05% FS |
| Normalization: | Automatic Temperature Compensation |
| Temp. Comp. Range: | 10ºC to 40°C |
| Temperature Sensor: | Platinum Resistance Temperature Detector (RTD) |
| Temp. Sensor Accuracy: | ± 0.05°C |
| Temp. Sensor Resolution: | 0.003°C |
| Battery Life: | 10 Years - based on one reading/min |
| Clock Accuracy (typical): | ± 1 minute/year |
| Operating Temperature: | -20°C to 80°C |
| Maximum # Readings: | 40,000 of level and temperature |
| Memory: | Slate and Continuous |
| Communication: | Optical Infra-red: USB, RS-232, SDI-12 |
| Communication Speed: | 9600 bps |
| Size: | 22 mm x 154 mm (7/8" x 6" ) |
| Weight: | 179 grams (6.3 oz) |
| Corrosion Resistance: | Zirconium Nitride (ZrN) Coating |
| Other Wetted Materials: | 316L Stainless Steel, Delrin®, Viton® |
| Sampling Modes: | Linear, Event & User-Selectable with 30 separate line items, Future Start, Future Stop, Real Time View |
| Measurement Rates: | 0.5 sec to 99 hrs |
| Barometric Compensation: | High accuracy, air-only, Barologger Gold |
| LT Models | Full Scale (FS) | Accuracy |
|---|---|---|
| F15, M5 | 16.4 ft., 5 m | ± 0.010 ft., 0.3 cm |
| F30, M10 | 32.8 ft., 10 m | ± 0.016 ft., 0.5 cm |
| F65, M20 | 65.6 ft., 20 m | ± 0.032 ft., 1 cm |
| F100, M30 | 98.4 ft., 30 m | ± 0.064 ft., 1.5 cm |
| F300, M100 | 328.1 ft., 100 m | ± 0.164 ft., 5 cm |
Note:
Solinst recommends using the most recent Levelogger Gold firmware version with Levelogger Software Version 4.4.0. See Section 2.3. Contact Solinst if you need to upgrade your firmware from version 1.016 or lower.
