3.0 Connecting Dataloggers

3.1 Levelogger Connection

The SRU cable connects to the top of a Levelogger's Direct Read Cable. Hold the Direct Read Cable connection and thread the SRU cable connector onto the Direct Read Cable.


solinst levelogger connection to sru

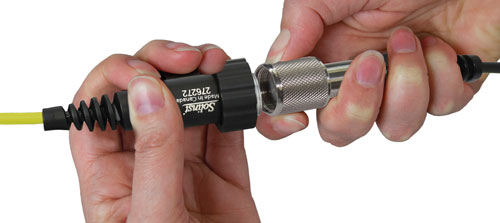

Figure 3-1 Levelogger Connection



An L5 Threaded or Slip Fit Adaptor can also be used to connect a Levelogger to the SRU cable.
