4.2 Programming a RRL Gold Network

Step 4: Programming Your RRL Gold Station

In Step 4, enter the serial number of the RRL Gold Station you are programming; the Location of the Station, i.e.: “Home Station”, “Well 1”, “Relay Station 2”; the Com Port being used to program the RRL Station; and the Sample Rate for that station (if different from the one set in Step 2).

If you are programming the Home Station, you will select whether there is a Levelogger connected to the station. If there is not, you will skip to Step 6. If there is a Levelogger connected, or you are programming a Remote Station, you will proceed to Step 5.

solinst rrl user guide programming rrl station programming remote radio link station image

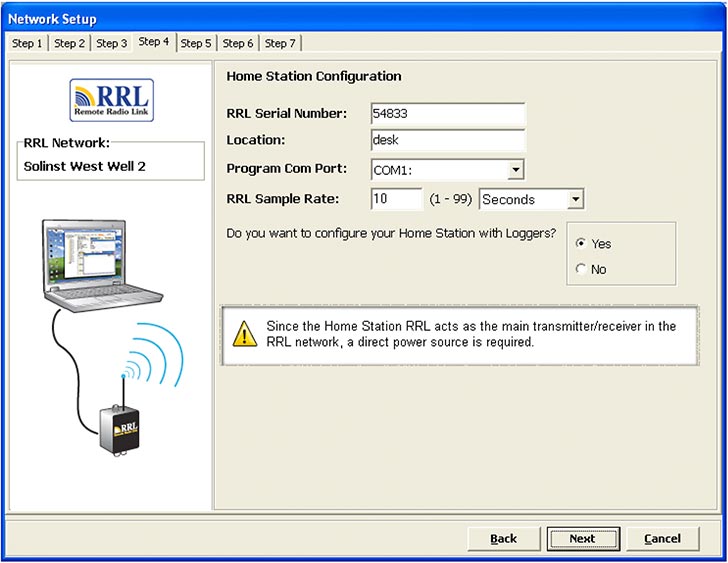

Figure 4-7 Programming a RRL Gold Station
