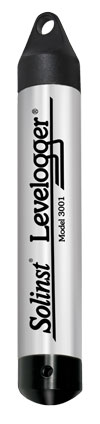

The Levelogger Junior provides an inexpensive alternative for measuring groundwater and surface water levels and temperature.
Note:
Solinst recommends using the most recent Levelogger Junior firmware version with Levelogger Software Version 4.4.0. See Section 2.3.
| Levelogger Junior Technical Specifications | |
|---|---|
| Level Sensor: | Piezoresistive Silicon in 316L Stainless Steel |
| Ranges: | 15, 30 ft. (5, 10 m) |
| Accuracy: | ± 0.1% FS |
| Normalization: | Automatic Temperature Compensation |
| Temp Comp. Range: | 10ºC to 40ºC |
| Temperature Sensor: | Platinum Resistance Temperature Detector (RTD) |
| Accuracy: | ± 0.1ºC |
| Resolution: | 0.1ºC |
| Battery life: | 5 years (based on 1 reading/minute) |
| Clock Accuracy (typical): | ± 1 minute / year |
| Operating Temperature: | -20ºC to 80ºC |
| Memory: | Slate mode |
| Maximum # Readings: | 32,000 (no data compression) |
| Com Interface: | Optical Infra-red: USB, RS-232, SDI-12 |
| Communication Speed: | 9600 bps |
| Size: | 22 mm x 140 mm (7/8" x 5.5 ") |
| Weight: | 154 g (5.4 oz) |
| Wetted Materials: | Delrin®, Viton®, 316L Stainless Steel |
| Sampling Mode: | Linear, Future Start, Real Time View |
| Measurement Rates: | 0.5 seconds to 99 hours |
| Altitude Input: | -980 to 16,400 ft. (-300 to 5,000 m) |
| Barometric Compensation: | High accuracy, air-only, Barologger Gold |
| LT Models | Full Scale (FS) | Accuracy |
|---|---|---|
| F15, M5 | 16.4 ft., 5 m | ± 0.020 ft., 0.6 cm |
| F30, M10 | 32.8 ft., 10 m | ± 0.032 ft., 1.0 cm |
Note:
The Levelogger Junior looks very similar to the newer Levelogger Junior Edge. To determine the difference, look at the serial number on the body of the Levelogger. If the fourth number in the serial number is 1, it is a Levelogger Junior. If the fourth number is a 2, it is a Levelogger Junior Edge.
