8.2 Data from Levelogger

‘Data from Levelogger’ downloads the stored data from the attached Levelogger. The screen (Figure 8-4) allows scrolling with the Up/Down buttons through the stored data, indicates battery level, time, data logger serial number and number of readings. To save the data to the Leveloader, push the left Chevron Button. After the data has been saved in the Leveloader memory, the Leveloader will return to the main menu.

solinst leveloader levelogger 8.2 data from levelogger use leveloader to read data from levelogger image

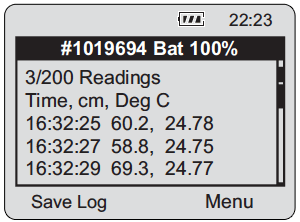

Figure 8-4 Data from Levelogger Menu
