Project View can be accessed by clicking the View Project Details icon beside any project name (or by clicking the project name) listed under My Projects in the Solinst Cloud Dashboard, or by going to the Projects section from the main menu.

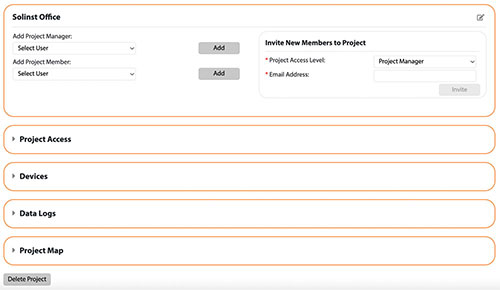

Figure 4-3 Project View
Note:
You can also get to Project View by clicking Go To Project from a pop-up in the Dashboard or Project Maps.
In Project View, you can add new members to the project, view the member's access level and delete members, add devices to the project, and view data logs and the project map.
You can change the name of a project by using the edit icon at the top right of Project View.
You can delete a project by clicking Delete Project at the bottom of Project View.
4.2.1 Project Members
Similar to creating a new project, you can add members to a project in Project View, as well as invite new members. See Section 4.1.

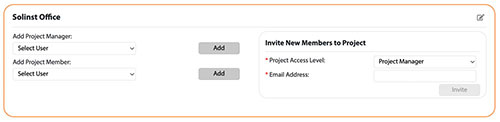

Figure 4-4 Project View – Project Members

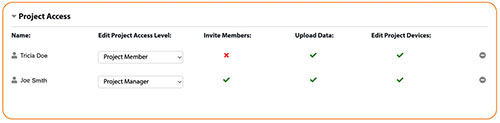

4.2.2 Project Access
Project Access lists each member currently in the project and the access level they have, e.g., Project Manager or Project Member. You can Edit the Project Access Level using the drop-down menu.
Project Access determines the functions that members have available to them, including the ability to invite members to a project, upload data, and edit project devices.
The access that comes with each Project User Level is as follows:
Project Manager:
- can add/remove users to/from the project
- can edit all dataloggger and telemetry settings for the project, and project data stored in Solinst Cloud
- can delete the project, and all project data stored in Solinst Cloud
Project Member:
- can edit all datalogger and telemetry settings for the project, but not data stored in Solinst Cloud
- can view project data stored in Solinst Cloud
You can remove a member from a project by clicking the delete icon beside their information.
Figure 4-5 Project View – Project Members
4.2.3 Devices
Devices lists each LevelSender in your project by serial number, or the name given when programming it.

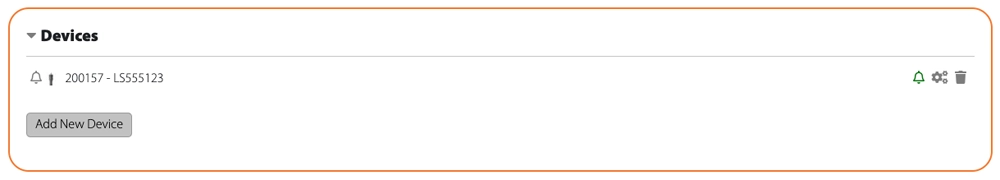

Figure 4-6 Project View – Devices
To view the device settings, click the Device Settings icon. This will take you to the LevelSender Settings page. See Section 5.2.1.
To delete a device from a project, click the Delete Device icon.
By clicking Add New Device, you will be taken to the LevelSender Setup Wizard to program a connected LevelSender. See Section 5.1.1.
4.2.4 Data Logs
Data logs uploaded and approved in the Dashboard will be listed under Data Logs in Project View. You can view the file by clicking the View This File icon . The data will be shown in chart and list view for you to review.
You can also download or delete the file, or send a link to the data file by clicking the Copy This Link icon .

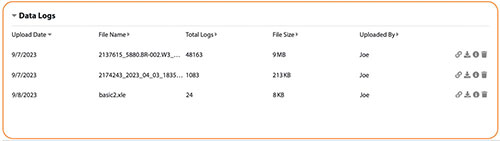

Figure 4-7 Project View – Data Logs
4.2.5 Project Map
Each LevelSender obtains GPS coordinates from the cellular network based on the location of the nearest cellular tower. From this, a Project Map is created which displays all device locations in your projects. You can display in Map, Satellite or Street View. You can zoom in and out, and drag to different device locations. To re-center, click Center Map.
By selecting a device from the map, a pop-up will display information from that LevelSender, including the serial number, location, and the latest report information including the LevelSender time, internal barometer reading, and the data from the connected datalogger(s).
From the pop-up you can also Go To the Project to view more details or make changes, or Change the Position of the LevelSender by entering custom GPS coordinates, or manually dragging its position on the map.
Note:
You can also override the LevelSender GPS coordinates and apply custom GPS coordinates to your LevelSender using Remote LevelSender Changes, see Section 5.3.

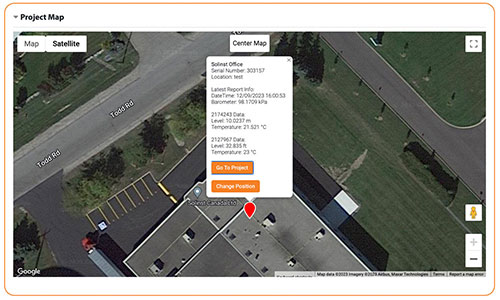

Figure 4-8 Project View – Project Map
