6 RRL Gold Station Hardware Setup

Note:

See Section 2.2 for connecting Leveloggers and Splitters.

RRL Gold Stations come standard with a built-in 900 MHz radio module. Also standard is a 6" half wave (2.1 dBi) antenna, six (6) 3.6V AA lithium batteries, and dust caps to protect connections when not in use.

solinst rrl user guide 6 rrl station hardware setup setting up rrl remote radio link stations setup rrl stations image

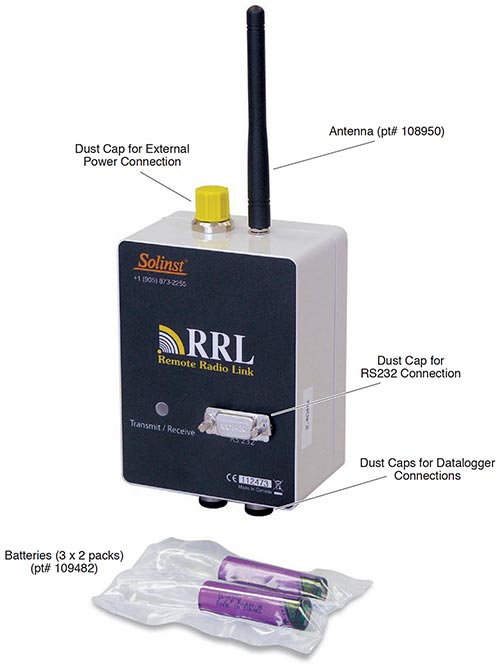

Figure 6-1 RRL Gold Station (pt# 109236)
