7.0 Levelogger Software and Data Management

7.1 Software Requirements and Installation

The minimal hardware and software requirements for software installation and operation are:



Hardware Software
Processor: 1 GHz or faster processor or SoC OS: Windows 10
RAM: 1 GB for 32-bit or 2 GB for 64-bit
Hard disk space: 128 MB
Display: 800 x 600
Ports: USB or RS-232



Web Download

  1. Download the newest version of Levelogger Software by visiting: https://www.solinst.com/downloads/
  2. If the installer does not automatically start, to activate the software install click on the 'setup.exe' file.
  3. The Software Installation Wizard will guide you through the remaining installation process. Figure 7-1 shows the Levelogger Installation Wizard.
  4. Restart the computer after installation is completed. Default Directory is
    C:\Program Files\Solinst\Levelogger4_6

solinst levelogger software installation wizard

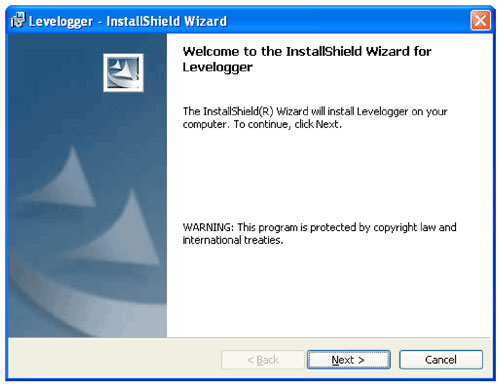

Figure 7-1 Software Installation Wizard
