Flexible Datalogger Communication Options

The AquaVent has options for communicating strictly with Solinst software and accessories, or integrating into a telemetry system, SCADA/PLC system or a third-party datalogger.

The AquaVent can communicate with Levelogger Software. It can be used with the Solinst Levelogger App and Interface, and the DataGrabber™.

For deeper, hard to access applications, or areas that are humid or prone to flooding, the Levelogger Edge absolute pressure water level datalogger is also an option (see Model 3001 Levelogger Edge Data Sheet).



AquaVent Communication Wellhead

The AquaVent Communication Wellhead fits conveniently onto a 2" (50 mm) well casing using the well cap base (a 4" well adaptor is available).

There are two options: the SP Wellhead has a connection for communicating with Solinst software and accessories; the SPX Wellhead has an additional connection for communicating with third party dataloggers or telemetry systems using MODBUS (RS-232/RS-485) or SDI-12 protocols.

Each Wellhead contains 4 1.5V AA lithium batteries that power the AquaVent logger. They are user-replaceable and can last 8 years based on 1 reading per minute (the internal AquaVent logger battery is only used to maintain the clock).

For permanent moisture protection, the Wellheads contain multiple built-in desiccants and have a hydrophobic filter where the vented cable terminates at surface.

solinst aquavent aquavent dataloggers aquavent communications aquavent datalogger communications aqua vent datalogger communications image

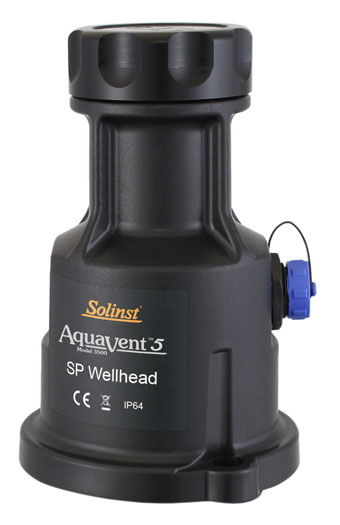

SP Wellhead

One 10-Pin Connection for Solinst Software and Accessory Connector Cables

solinst aquavent aquavent dataloggers aquavent communications aquavent datalogger communications aqua vent datalogger communications image

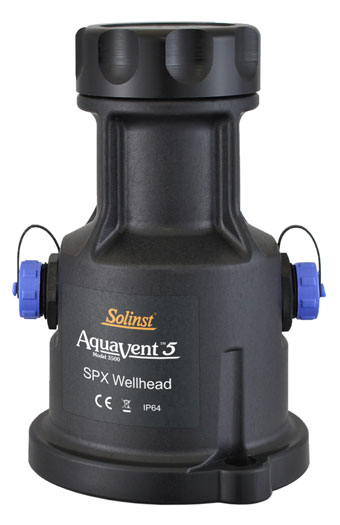

SPX Wellhead

Additional 12-Pin Connection for SDI-12 and MODBUS RS-232 and RS-485 Connector Cables



AquaVent Wellhead Communication Cables

There are multiple ways to communicate with the AquaVent; convenient Wellhead Cables are available for each option.

solinst aquavent aquavent dataloggers aquavent communications aquavent datalogger communications aqua vent datalogger communications image

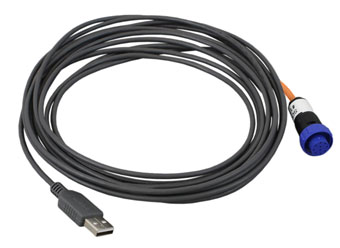

USB Connector Cable for Communicating with Solinst Levelogger PC Software

solinst aquavent aquavent dataloggers aquavent communications aquavent datalogger communications aqua vent datalogger communications image

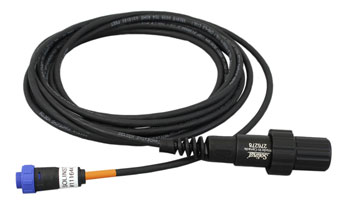

Connector Cable for Communicating with the Levelogger App Interface and DataGrabber



For SP and SPX Wellheads



solinst aquavent aquavent dataloggers aquavent communications aquavent datalogger communications aqua vent datalogger communications image

Connector Cables for Communicating
using SDI-12 and MODBUS RS-232/RS-485 Protocols

For SPX Wellhead Only



solinst aquavent aquavent dataloggers aquavent communications aquavent datalogger communications aqua vent datalogger communications image

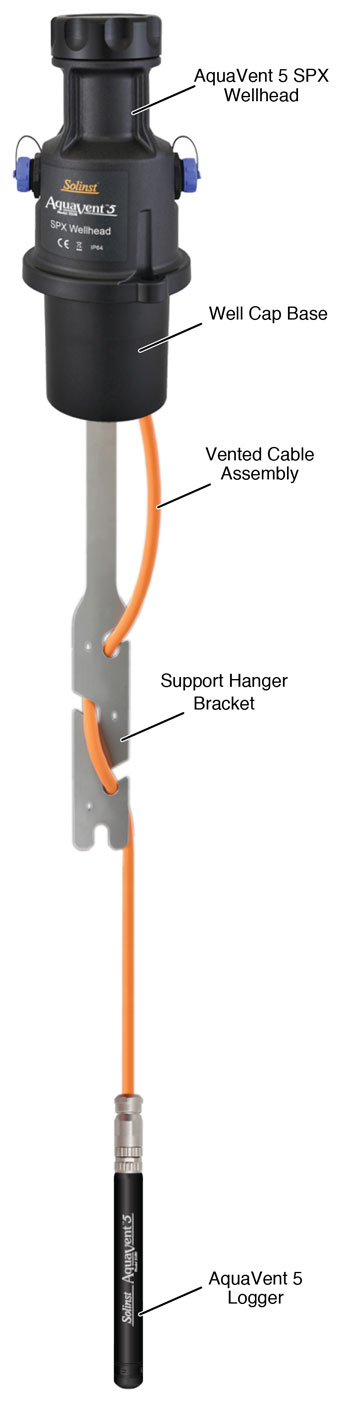

AquaVent Vented Cable Options

AquaVent Vented Cable assemblies are available in custom lengths of up to 500 feet.

Vented Cables contain power and communication wires, as well as a vent tube running the length of the cable. Vented cables provide direct read communication from the AquaVent logger to the Wellhead. The vent tube and wires are jacketed in polyurethane, providing durability and protection.

The vented cables are easily and securely connected to the AquaVent logger and Wellhead, using stainless steel twist connections. A hanger bracket is included with each Wellhead to support the vented cable when deployed.

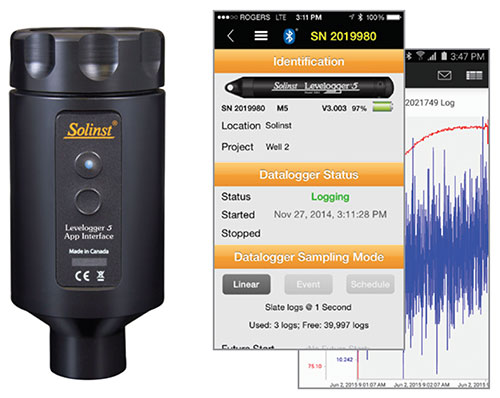

Solinst Levelogger App & Levelogger App Interface

The Levelogger App Interface uses Bluetooth® technology to connect your AquaVent to your smart device. With the Solinst Levelogger App, you can download data, view real-time data, and program your AquaVent. Data can be e-mailed from your smart device directly to your office (see Model 3001 Solinst Levelogger App & Interface Data Sheets).

solinst levelogger app and interface
