107 TLC Meter

solinst temperature profiling conductivity profiling groundwater temperature tlc meters model 107 tlc meter salt water intrusion saltwater intrusion studies saltwater intrusion salt water intrusion investigations conductivity temperature level image

The Model 107 TLC Meter is ideal for profiling conductivity and temperature in wells and open water, for salt-water intrusion studies, and a general indication of contamination levels. The 3/4" (19 mm) diameter probe is attached to Solinst PVDF flat tape; accurately laser marked every 1/100 ft or each millimeter. Lengths up to 1000 ft or 300 m, mounted on a Solinst reel.



solinst temperature profiling conductivity profiling groundwater temperature tlc meters model 107 tlc meter salt water intrusion saltwater intrusion studies saltwater intrusion salt water intrusion investigations conductivity temperature level image

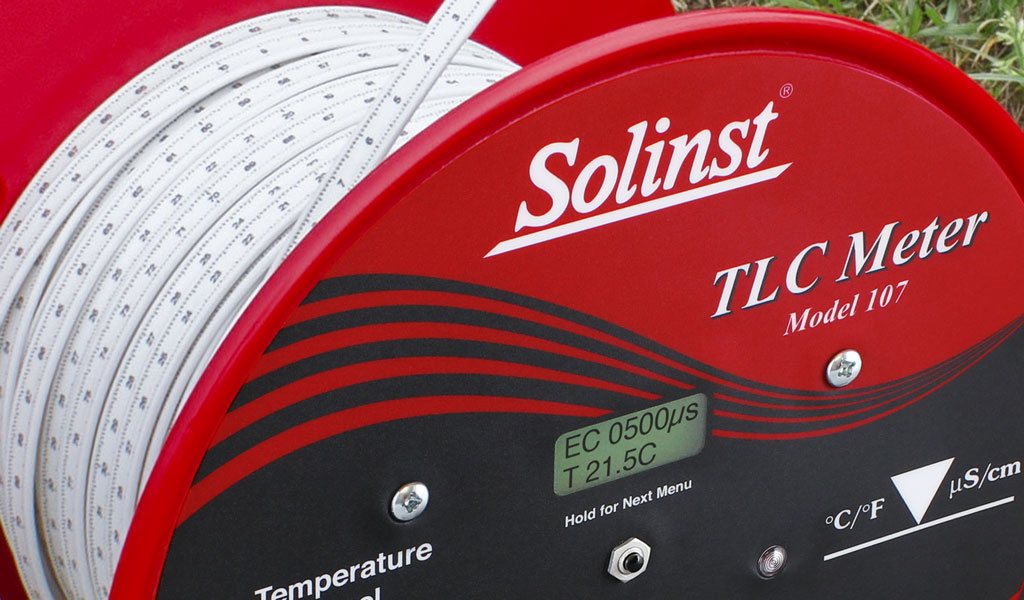

The conductivity range is from 0-80,000 µS/cm. Conductivity and temperature measurements are displayed on a rotating LCD screen on the face of the reel. Conductivity accuracy is 5% of reading or 100 μS (which ever is greater). A light and buzzer are briefly activated when the zero point of the probe enters water. The depth to water and depth of displayed readings are read off the tape. The 9V alkaline battery is housed in an easy-access battery drawer and provides up to 90 hours of use.



Running through a 2 Point Calibration with the Solinst TLC Meter

This video walks you through the simple process of calibrating the Solinst Model 107 TLC Meter with 2 calibration points (1413µS/cm and 5000µS/cm).





Related Products



solinst levelogger 5 ltc water conductivity datalogger

Levelogger 5 LTC



solinst 101 water level meter

Flat Tape Water Level Meter



solinst model 615ml multilevel drive-point system

Drive-Point Multilevel System

The 615ML Multilevel Drive-Point System allows monitoring of up to 6 zones in one drive, using ports with a dual barb stem to attach either ¼" or ⅜" OD tubing. Install using extensions and a Manual Slide Hammer, similar to standard 615 installations, for high-resolution vertical groundwater or soil gas profiling.



solinst model 104 sonic water level meter

Solinst Sonic Water Level Meter

The 104 Solinst Sonic Water Level Meter is a portable, acoustic ranging instrument designed to simply and quickly provide depth to static water level measurements down to 600 m (2000 ft), without the need to lower equipment down a well. Ideal for straight, crooked, narrow, hard to access, or contaminated wells.



solinst model 425 d deep discrete interval sampler

Sample from Depths as Much as 1200 m (4000 ft)

The Model 425-D Deep Sampling Discrete Interval Sampler obtains water or product samples from a specific zone without the need for purging. The sealed sampler is pressurized at depth allowing sample to enter. It is vented and sealed before retrieval to surface, maintaining sample integrity.



Blog Posts & Case Studies

solinst bladder pumps for groundwater samples

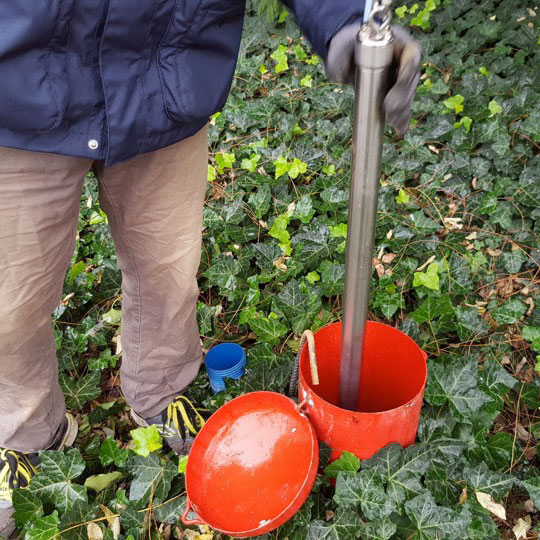

Bladder Pumps for Groundwater Samples
