Probes and Features

Narrow Diameter Probes

solinst model 102 water level indicator probes

Model 102 Water Level Indicator Probes are designed for flexibility. The probe tips use a recessed design to minimize false signals in cascading water.

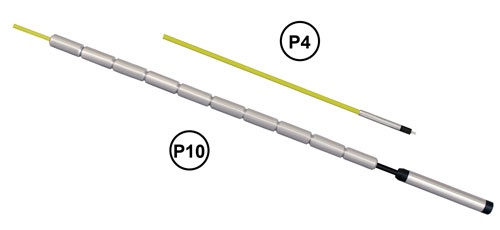

P10: 10 mm dia. x 70 mm long (3/8" x 2.75") stainless steel with 10 stainless steel weights, weighing 174 g (6.14 oz). This probe is ideal for the majority of water level measurement applications. The flexible weight assembly allows easy well access and keeps the cable hanging straight in monitoring wells.

P4: 4 mm dia. x 38 mm long (0.157" x 1.5") stainless steel weighing 10 g (0.35 oz), with no weights. It is ideal for shallow applications and for accessing very narrow diameters, especially the channels of the Solinst CMT System, DrivePoint Piezometers or narrow open tubes.



Water Level Meter Features

Low Cost

• Solinst quality at a low price


Narrow

• 4 mm (0.157") diameter probe


Long Life

• Rugged, corrosion resistant components
• Strong, flexible cable is easily spliced
• Replacement probes, cables and parts


Accurate

• Precise markings every mm or 1/100 ft
• Traceable to national standards



solinst water level indicators water level meters coaxial cable water level meters water level measurement measure water levels in narrow diameter tubes accurate water level measurements narrow water level probes low cost water level indicators durable water level indicators p4 probe p10 probe 102 p10 probes 102 p4 probes laser marked water level indicators image

Measure Water Levels within the narrow channels of a Solinst CMT® System.
