Model 102 Water Level Indicator Operating Principles and Laser Marked Cable

Model 102 Laser Marked Water Level Indicator

solinst model 102 laser marked water level indicator



The Solinst Model 102 Water Level Indicator is designed to measure groundwater levels, especially in small diameter tubes and piezometers, or where a flexible assembly is needed to get past down hole instrumentation.

Also available from Solinst, are the Model 101 Water Level Meter and 101B Water Level Meters, which feature easy-to-read, easily repaired flat tape. (See Model 101 Water Level Meter Data Sheets).



Operating Principles

The Model 102 Water Level Meter uses a choice of two small diameter probe designs, attached to a narrow coaxial cable, fitted on a sturdy ergonomically designed reel. A standard 9 volt battery, housed in an easy-access battery drawer, powers the Water Level Meter.

When the probe enters water the electrical circuit is completed, sending a signal back to the reel where a light and clearly audible buzzer are activated. The water level is then determined by taking a reading directly from the cable at the top of the well casing or borehole.

A sensitivity control allows the buzzer to be scaled back or turned off while in cascading water, and ensures a clear signal in both high and low conductivity conditions.



Laser Marked Cable

The coaxial cable has a durable polyethylene jacket with permanent markings precisely laser etched on the cable every 1/100 ft. or each millimeter.

The cable reels smoothly, remains flexible, and comes in lengths from 100 ft. - 1000 ft. (30 m - 300 m).

A braided copper outer conductor gives flexibility and a stranded stainless steel central conductor gives strength. It is easy to repair and splice.

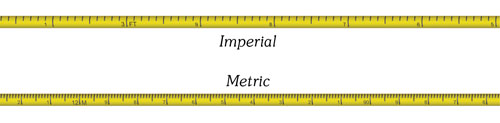

solinst model 102 water level indicator imperial laser marked cable
Imperial

Metric
solinst model 102 water level indicator metric laser marked cable

Laser Markings Each 1/100 ft. or Each Millimeter
