101 Power Winder

Power Winder Adjusts to Fit Almost Any Reel

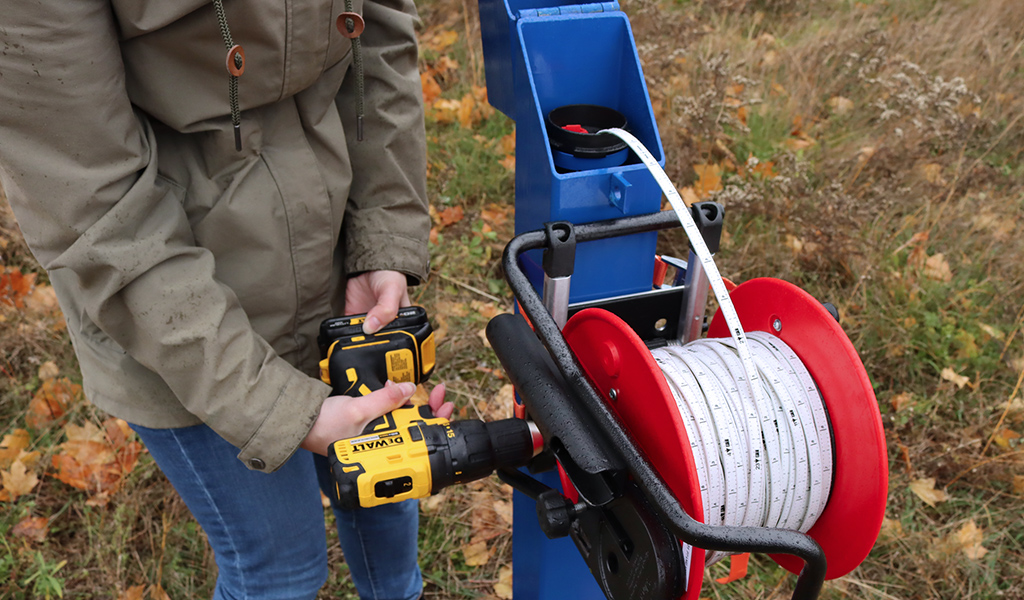

solinst 101 power winder connected to solinst water level meter using flex adaptor with cordless drill



The 101 Power Winder provides both convenience and ease of use for all Solinst reel-mounted devices. The Power Winder is lightweight and easy to attach to small, medium and large size Solinst reel frames, and is simple to adjust to fit other Water Level Meters in the market. It is designed to allow effortless winding of longer lengths of tape, cable or tubing. The Power Winder uses a standard power drill or driver to operate.





Why You Need the 101 Power Winder

solinst 101 power winder



Save Time and Effort in the Field with this Simple Tool

The Model 101 Power Winder is designed to conveniently connect to the frame of any size or model Solinst reel to allow effortless winding of longer lengths of tape, cable and tubing.

The Power Winder is lightweight and very easy to adjust to fit small, medium, or large Solinst reels. It features adjustable telescoping arms and rollers, also allowing it to work with other Meters in the market. The Power Winder is simple to remove and use with multiple meters, but is ideal for dedicating to one reel.

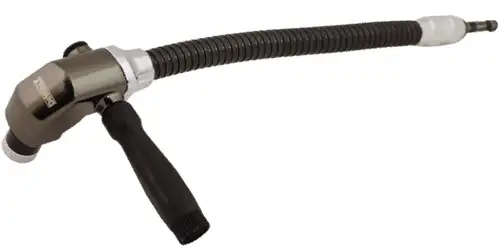

solinst power winder flex drive adaptor to use with a standard drill

The Power Winder uses a standard power drill to operate. The drill can connect directly to the ¼" hex fitting on the Power Winder, or an optional flex drill adaptor can be used to allow more ergonomic operation. The drill turns the rollers that are in contact with the reel. The drill can be operated at various speeds, in forward and reverse, to turn the reel and unwind and rewind the tape.

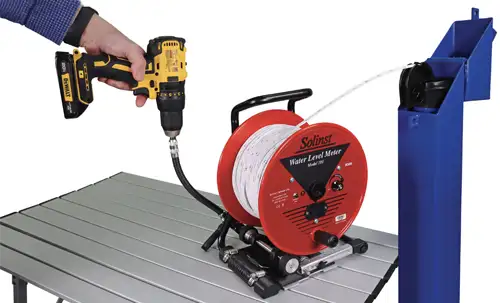

Reels using the Power Winder can be placed on the ground, on a Solinst Field Table, or other flat surface. Small reels can also be secured to a well casing using a tape guide or optional cinch straps.

The Power Winder is ideal for use with Solinst Water Level Measurement Devices, but can also be used with Solinst Tag Lines or pump tubing reels, such as the Model 425 Discrete Interval Samplers. When connected to a Solinst Level Measurement Device, using with a drill at a very slow speed setting can allow precise level measurements.
