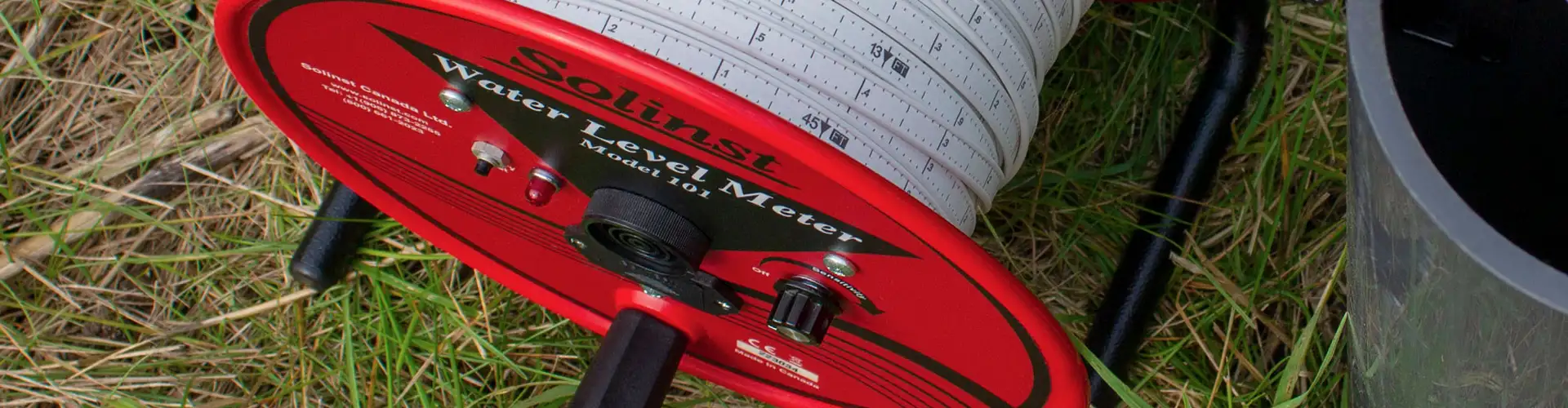

101 P7 Water Level Meter

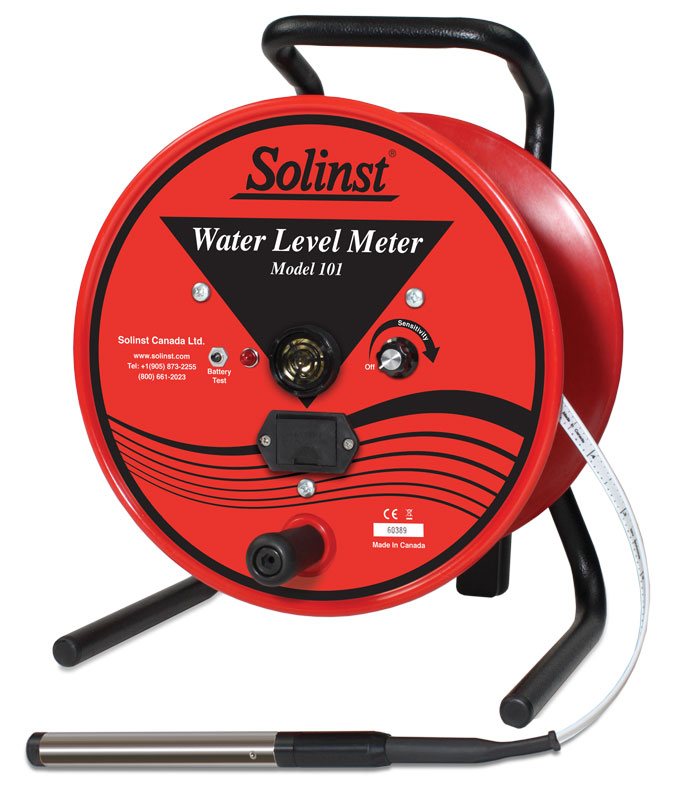

The Solinst Model 101 P7 Water Level Meter
The Industry Standard for Depth-to-Water Precision
The Model 101 Water Level Meter is the workhorse of groundwater monitoring, trusted by field hydrogeologists worldwide. Combining our highly responsive P7 submersible probe with our premium, laser-marked PVDF flat tape, this system delivers uncompromising reliability in any monitoring well.
The P7 Submersible Probe
Engineered for Instantaneous, Zero-Displacement Readings
- Sensor-at-the-Tip Design: The sensor is located at the absolute tip of the probe, providing immediate, highly consistent readings with zero water displacement lag the instant it contacts the water table.
- Dual-Function Testing: Easily measures both depth-to-water and total well depth.
- Heavy-Duty Construction: The probe is constructed from high-grade, corrosion-resistant stainless steel. It is fully submersible and pressure-rated up to 300 m (1,000 ft).

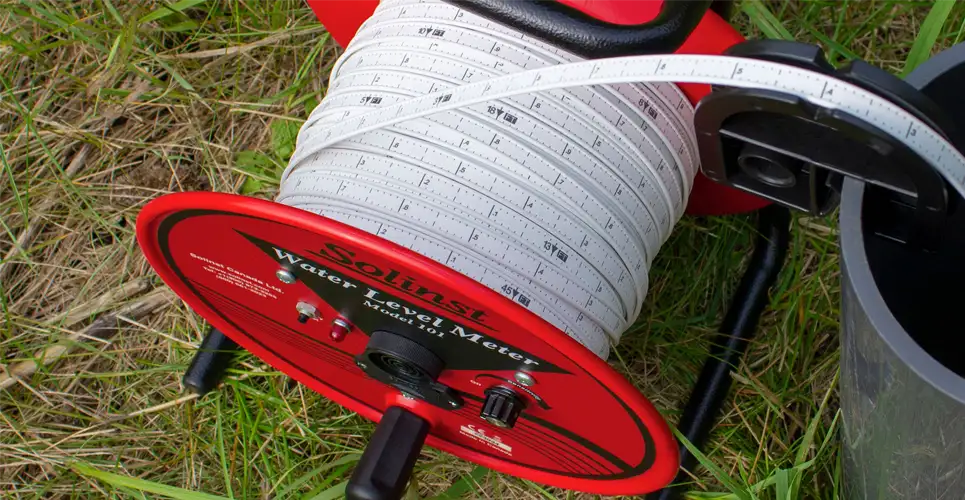

Enhanced Laser Marked Tape Features
The Toughest, Most Legible Tape in the Industry
- No-Cling “Dog-Bone” Profile: Designed with an enhanced, thick dog-bone cross-section that prevents the flat tape from sticking or clinging to the wet interior walls of the well casing.
- Permanent Precision Markings: Accurate laser-markings are heat-impregnated directly into the PVDF material every millimeter or
1/100 ft . - Non-Stretch Structural Integrity: Reinforced with heavy, stranded stainless steel and copper-clad steel conductors to ensure exceptional tensile strength, perfect electrical conductivity.
Heavy-Duty Accuracy. Backpack-Sized Portability

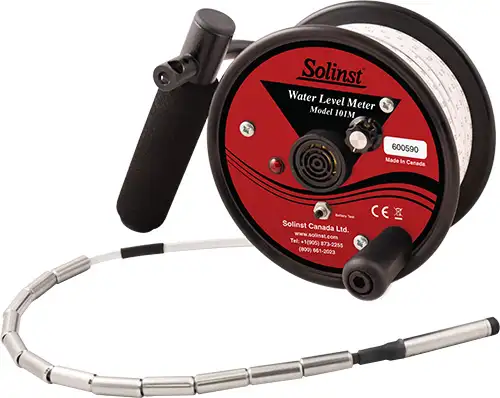

Get industry-standard water level measurements in your narrowest wells. The Solinst Model 101M Mini packs a rugged, laser-marked flat tape and a weighted
Compact and Lightweight
Mounted on an ergonomic, scaled-down mini reel, the entire system easily fits into a backpack or small carrying case. It’s the perfect companion for remote field sites where weight and space are at a premium.
10mm Diameter Probe
The specialized P10 probe features a ultra-slim diameter of just 10mm (3/8 inch). Combined with a flexible assembly of 10 stainless steel weights, it easily bypasses structural obstructions to hang straight in narrow wells.
Laser-Marked Accuracy
The narrow 5mm (1/5 inch) polyethylene flat tape features permanent, heat-impregnated laser markings accurate to the millimeter or
Simple, Reliable Field Operation
The 101M Mini Water Level Meter operates on the same time-tested electronic principles as the industry-standard Model 101 Water Level Meter.
-
The Sensor Contact: As the probe lowers into the borehole, an insulating gap between the stainless steel electrodes remains open.
-
The Water Bridge: The instant the probe tip touches water, the circuit is completed, sending a signal back up the non-stretch tape.
-
Instant Indication: The reel immediately activates a loud, high-pitched buzzer and a brilliant red LED light.
-
Precision Readout: Read your depth-to-water measurement directly off the high-contrast laser markings at the top of the well casing.
Engineered for Tough, Real-World Fieldwork
- Adjustable Sensitivity Control: Easily fine-tune the dial to ignore cascading water or compensate for high/low conductivity environments, ensuring zero false readings.
- Ergonomic Reel Design: Features an integrated, comfortable carrying handle and a built-in probe holder to keep your equipment secure during transit.
- Padded Nylon Carrying Case (Optional): Protect your investment with a rugged, water-resistant zippered bag that features a convenient shoulder strap and external pockets for field notes.
