Laser Marked Flat Tape
The 105 Well Casing and Depth Indicator uses corrosion and chemical-resistant flat tape. The tape is non-stretch and high in tensile strength to support the heavier 105 Probe. The thick dog bone design prevents adherence to wet surfaces and allows the tape to hang straight. It is also easy to repair and splice. The 3/8" (10 mm) tape comes with permanent laser markings every 1/100 ft. or each millimeter, in lengths up to 2000 ft. (600 m).

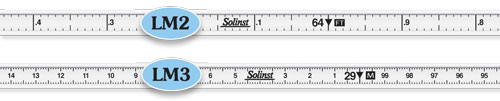

LM2: Feet and tenths: with markings every 1/100 ft.
LM3: Meters and centimeters: with markings every mm
Tape accuracy meets NIST and EU measurement standards
Well Casing & Depth Indicator Probe
The 105 Well Casing and Depth Indicator Probe is made from 316 stainless steel and is submersible up to 1650 ft. (500 m). It contains a strong internal magnetic assembly to detect metal casing and a plunger assembly to measure total well depth. The tape seal plug design allows the probe to be quickly and easily replaced if required.
Well Casing & Depth Indicator Probe
Well Casing & Depth Indicator Reels
With a well-balanced frame, convenient carrying handle, and handy probe holder, the standard reels are ergonomic and easy to use. They are rugged and smooth running. The battery is housed in an easy-access drawer in the front of the reel for quick replacement. The reels are equipped with an on/off switch, light, buzzer, battery test button, brake and a tape guide stored on the frame.
Standard Length Options
The Solinst 105 Well Casing & Depth Indicator is available in the following standard lengths:
| Small Reel | Medium Reel | Large Reel | |||
|---|---|---|---|---|---|
| 100 ft. | 30 m | 500 ft. | 150 m | 1250 ft. | 400 m |
| 200 ft. | 60 m | 750 ft. | 250 m | 1650 ft. | 500 m |
| 300 ft. | 100 m | 1000 ft. | 300 m | 2000 ft. | 600 m |
Other Options

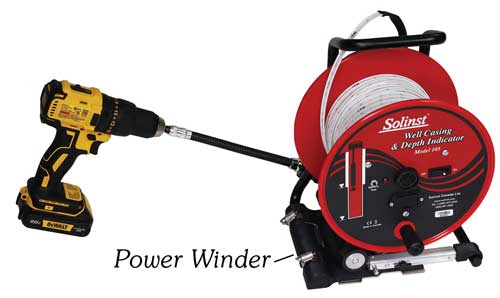

Power Winder: Lightweight and easy to attach to small, medium and large reel frames of the Model 105 Well Casing & Depth Indicator, the Power Winder is designed to allow effortless winding of longer lengths of tape. Simply uses a standard power drill to operate (see 101 Power Winder Data Sheet).
Carrying Case: An optional padded nylon carrying bag with a shoulder strap is available to fit medium and small reels. The sturdy bags have a zippered top and front pocket and a vent in the base to allow moisture to dissipate. They provide protection during transport as well as handling convenience.
Replacement Parts: Replacement probes, tapes, faceplates and other spare parts are available.
Tape Guide/Datum
A tape guide is provided which fits over the top of the well casing to protect the tape from damage and to provide an accurate measurement point. It ensures easy, consistent measurements regardless of who takes readings. It can also provide support for hanging small reels on the casing.
