Model 103 Tag Line

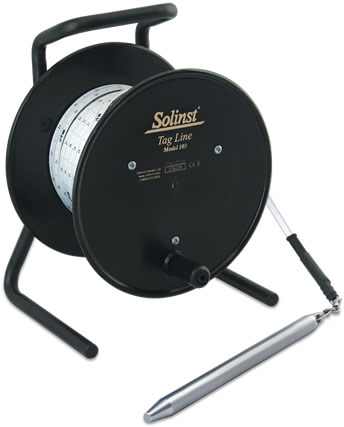

solinst 103 tag line with laser marked pvdf flat tape

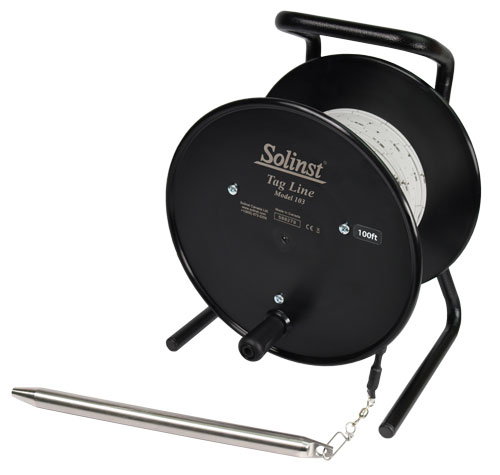

solinst 103 tag line with laser marked cable



The Model 103 Tag Line is a convenient option for measuring well depth during well construction and backfill layers during monitoring well completion. It is an ideal tool to measure sand and bentonite layers when installing Model 403 CMT® Multilevel Systems or Model 401 Waterloo Multilevel Systems.

The Tag Line uses a tag weight attached to a durable polyethylene coated stainless steel wireline, or PVDF flat tape, mounted on a sturdy freestanding reel. Cable markings are accurately laser marked every 1/4 ft. or 5 cm. Tape markings are every 1/100 ft. or each mm.

The cable has a minimum break strength of 270 lbs (122 kg), and comes in lengths up to 1000 ft. (300 m). The tape has a break strength of greater than 220 lbs (100 kg), and also comes in lengths up to 1000 ft. (300 m).

solinst 103 tag line laser marked cable feet markings

Cables are accurately laser-marked every 1/4 ft. or 5 cmGet

solinst 103 tag line laser marked cable metric markings



The 316 stainless steel tag weight comes in two sizes. The standard 3/4"ø x 1 ft. (19 mm x 30 cm) tag weighs 1.5 lbs (0.68 kg) and the narrow 1/2"ø x 1 ft. (13 mm x 30 cm) tag weighs 0.65 lbs (0.30 kg).

The weights can be clipped on and off the cable. This allows the reel- mounted, marked cable to be used as a support to accurately lower dataloggers, packers, bailers, pumps, or other sampling devices to specific depths in a well. The marked cable improves sampling efforts and the wireline provides a safe suspension system that is easy to deploy and retrieve.

Length Options:
Model 103 Tag Lines are available in the following standard lengths:

Small Reel 100 ft. 30 m
  200 ft. 60 m
  300 ft. 100 m
  500 ft. 150 m
  750 ft. 250 m
  1000 ft.. 300 m



solinst tag line stainless steel tags

Standard 3/4"ø tag and Narrow 1/2"ø tag
