Electronic Pump Control Unit External Filter Installation

solinst electronic pump control unit external filter installation how to install external filter to solinst electronic pump control unit image

External Filter Assembly
with Draining Valve

Tools and Materials Needed

  1. Solinst 464 Electronic Pump Control Unit with Supply and Drive Lines
  2. 464 ECU - External Filter Assembly for the Control Unit (Spare) (#112832)
  3. 9/16" and 3/4" Wrenches (or adjustable)
  4. PTFE tape



Instructions

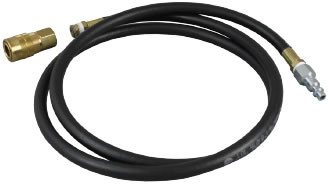

  1. Use a wrench to remove the female quick-connect fitting from the end of the supply line.
  2. solinst electronic pump control unit external filter installation how to install external filter to solinst electronic pump control unit image

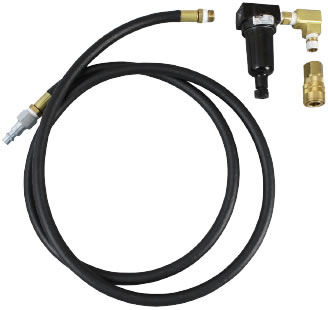

  3. Thread the fitting from the supply line to the connection on the External Filter Assembly. Use a wrench to tighten.

Note:

It is recommended to wrap PTFE tape around the threads of the supply line where the fitting was removed, before connecting to the filter assembly.

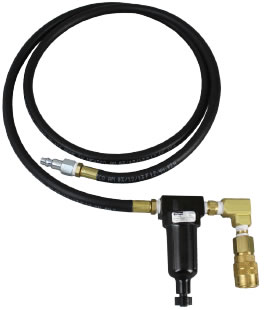

  1. Thread the supply line into the External Filter Assembly. Use a wrench to tighten.

solinst electronic pump control unit external filter installation how to install external filter to solinst electronic pump control unit image

solinst electronic pump control unit external filter installation how to install external filter to solinst electronic pump control unit image

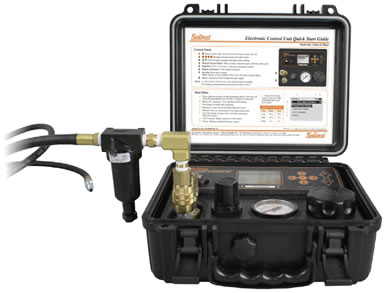

  1. Connect the supply line with installed External Filter Assembly to the 464 Electronic Control Unit.
  2. Note:

    See separate operating instructions for the 464 Electronic Control Unit.
