Peristaltic Pump Head Replacement Model 410 Mk3

Note:

See Page 1 for instructions to install the pump head on an Mk4 Peristaltic Pump.

Tools and Materials Needed

  1. Replacement Mk4 410 Peristaltic Pump Head Assembly (#113949)
  2. 9/64" (3.60 mm) Allen Key
  3. 11/32" (8.70 mm) Nut Driver
  4. Phillips Screwdriver

solinst 410 peristaltic pump head replacement parts for mk3 version

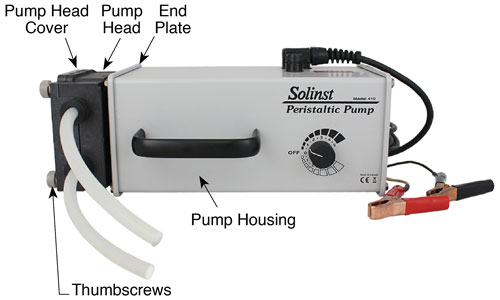

solinst mk3 peristaltic pump 108592

Solinst Mk3 Peristaltic Pump (#108592)



Instructions

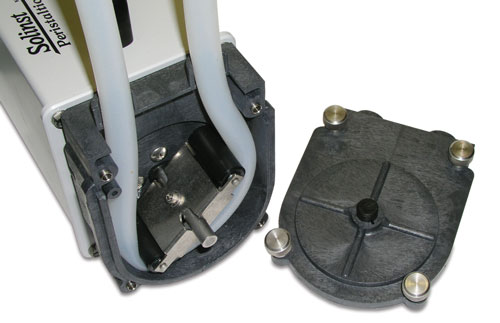

loosen the four thumbscrews on the 410 peristlatic pump mk3 head emove the pump head cover

  1. Disconnect the Peristaltic Pump from the power supply. By hand, loosen the four thumbscrews on the pump head. Remove the pump head cover.

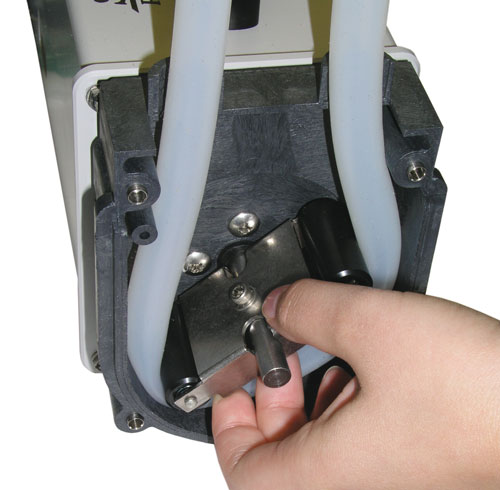

    2. manually rotate the head roller while pulling gently on the tubing to remove it from the 410 peristlaltic pump head mk3

  2. Remove the tubing clamps if necessary and manually rotate the head roller while pulling gently on the tubing to remove it from the pump head.

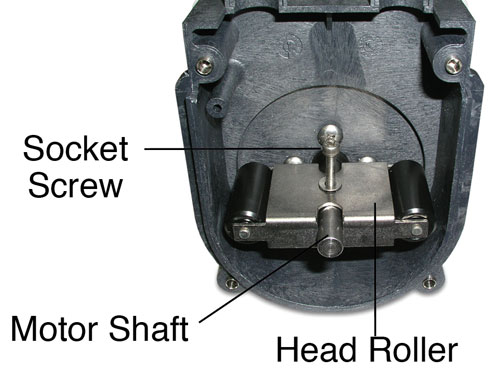

    3. solinst model 410 peristatlic pump mk3 pump head without cover showing rollers and motor shaft



  3. Use the 9/64" (3.60 mm) Allen key and 11/32" (8.70 mm) nut driver to unscrew and remove the socket screw, nut, and washer from the head roller. Remove the head roller from the motor shaft.
  4. Unscrew the four Phillips screws from inside the pump head and remove it from the end plate.
  5. Undo the four screws from the end plate and remove the end plate from the pump housing.

    6. Undo the four screws from the end plate and remove the end plate from the 410 persistaltic pump mk3 housing

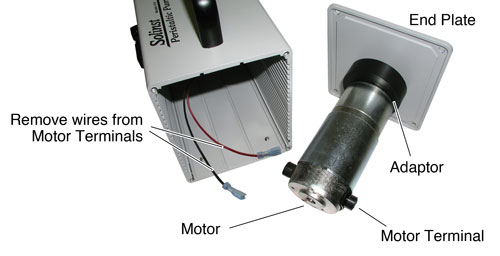

  6. Disconnect the black and red wires from the motor terminals.
  7. Unscrew the motor adaptor from the end plate. You will not need this end plate with the new pump head.
  8. Unscrew the adaptor and remove it from the motor. You will not need the adaptor with the new pump head.

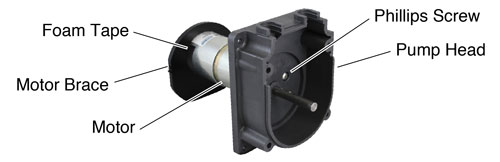

  9. Slide the motor brace onto the motor until it seats against the two terminals. Secure in place using the foam tape.
  10. Fasten the new pump motor to the pump head using the two Phillips screws.

    11. fasten the new 410 persitaltic pump motor to the pump head using the two Phillips screws



  11. Reconnect the red and black wires to the motor terminals.
  12. Align the tabs on the motor brace with the grooves in the pump housing and insert the motor into the pump housing. Secure the new pump head to the pump housing using the four screws.
  13. Rotate the shaft of the motor so the screw hole in the shaft is vertically facing.
  14. Slide the head roller onto the motor shaft and secure it using the screw, washer, and nut. Make sure the head roller turns freely and is not touching the pump head.
  15. Position the tubing around the impeller in a "U" shape with equal lengths. Turn the impeller to the 6 and 12 o'clock position and push the right hand tubing into the tubing pathway, holding near the bottom. Rotate the impeller clockwise until tubing is in place. Push the left half of the tubing into place and rotate the impeller.

Note:

To use 3/8" tubing with the new pump head, you will require Tubing Adaptor Kit #113913 (see Peristaltic Pump Operating Instructions). Tubing adaptor kits used with the original Mk3 pump head will not work with the Mk4 pump head.

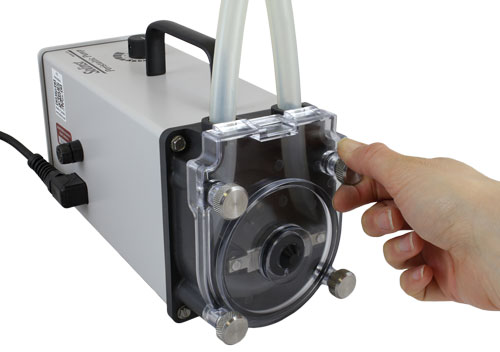

finger tighten 410 peristaltic pump head cover using thumbscrews



  1. Position the pump head cover and screw it firmly in place by hand. Thumbscrews should be finger tight. Do not use a wrench or over-tighten.
