Disassembly, Decontamination and Reassembly

Decontamination

Note:

The Bladder Pump has been decontaminated before leaving Solinst, however, you may wish to decontaminate your pump before use. The pump should be decontaminated between wells.

  1. Completely disassemble the pump. See Disassembly section.
  2. Wash all pump components with phosphate-free soap or a detergent.
  3. Rinse all components thoroughly with deionized water.
  4. Replace any worn O-rings and Bladder if necessary, and reassemble. We recommend replacing Bladders between wells, or as needed.



Disassembly

  1. Unscrew and remove the Filter Retainer, Vyon Filter and Top and Bottom Platens, being careful not to lose the Check Balls.
  2. Remove the Bladder Cartridge from the Pump Body.



Reassembly

  1. If necessary install new O-rings on both Top and Bottom Retainers and both Platens. (Total of 7).
  2. Put the Vyon Filter over the Filter Retainer. Screw the Filter Retainer into the Bottom Platen.
  3. Drop the 3/8" OD PTFE Check Ball into the Bottom Platen. Do not force the ball in, as the correct ball should drop in easily.
  4. Fit the Bottom Retainer of the Bladder Cartridge Assembly firmly into the Bottom Platen. (Bottom Retainer has a notched end).
  5. Slip the Pump Body over the Bladder Cartridge Assembly and screw it onto the Bottom Platen.
  6. Drop a 3/8" OD PTFE Check Ball into the Top Platen and screw the Pump Body onto it.
  7. Shake the assembled pump to hear if the Check Balls rattle. If not, repeat the steps to ensure that the Check Balls are positioned correctly.

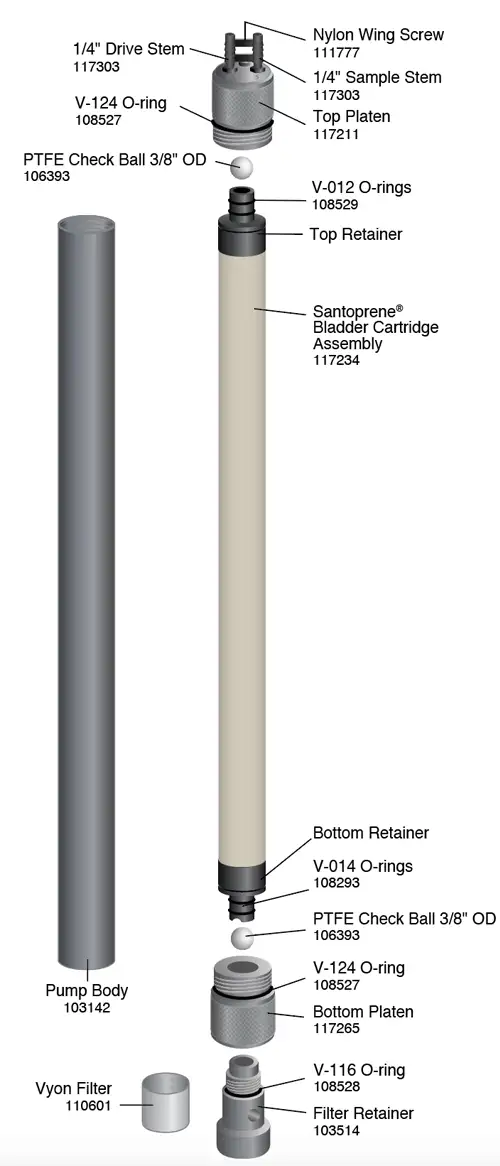

Model 407 2 ft. x 1.66" dia. PVC Bladder Pump (117212)

solinst pvc bladder pump 1 point 66 inch diameter by 2ft length schematic
